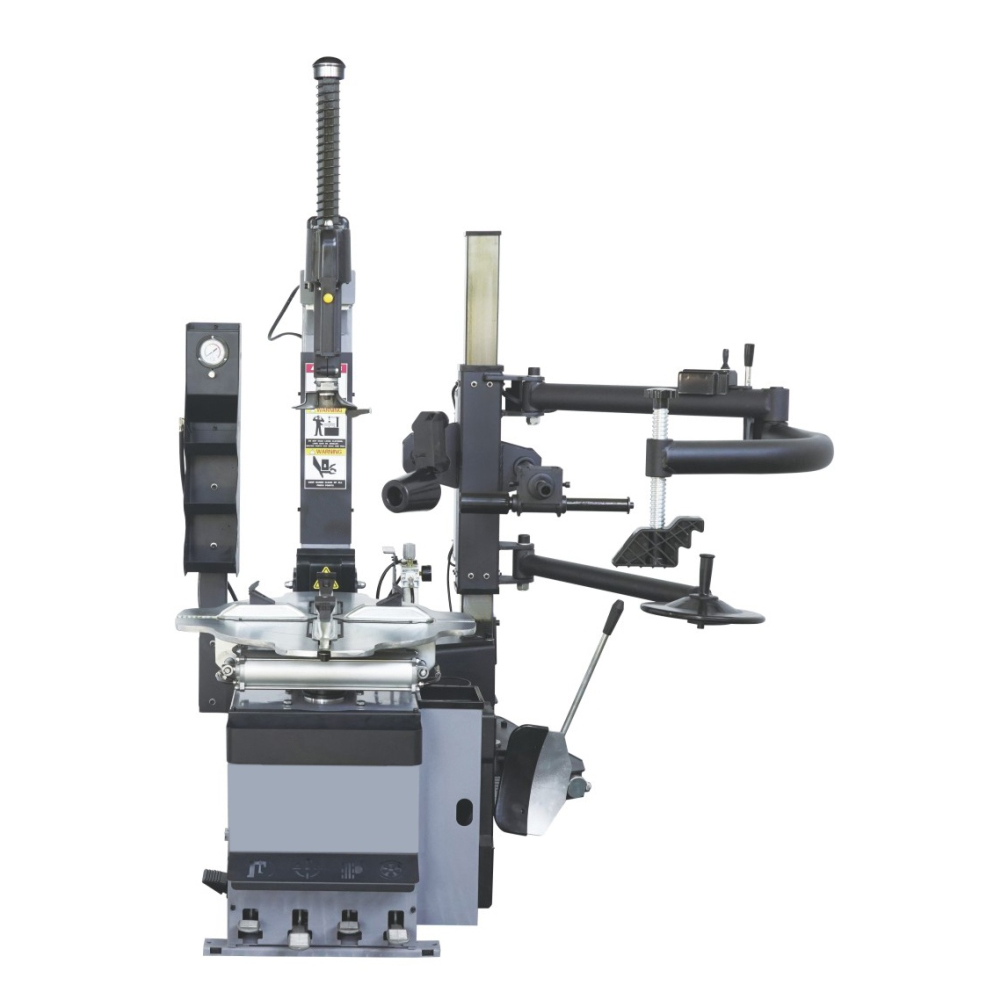

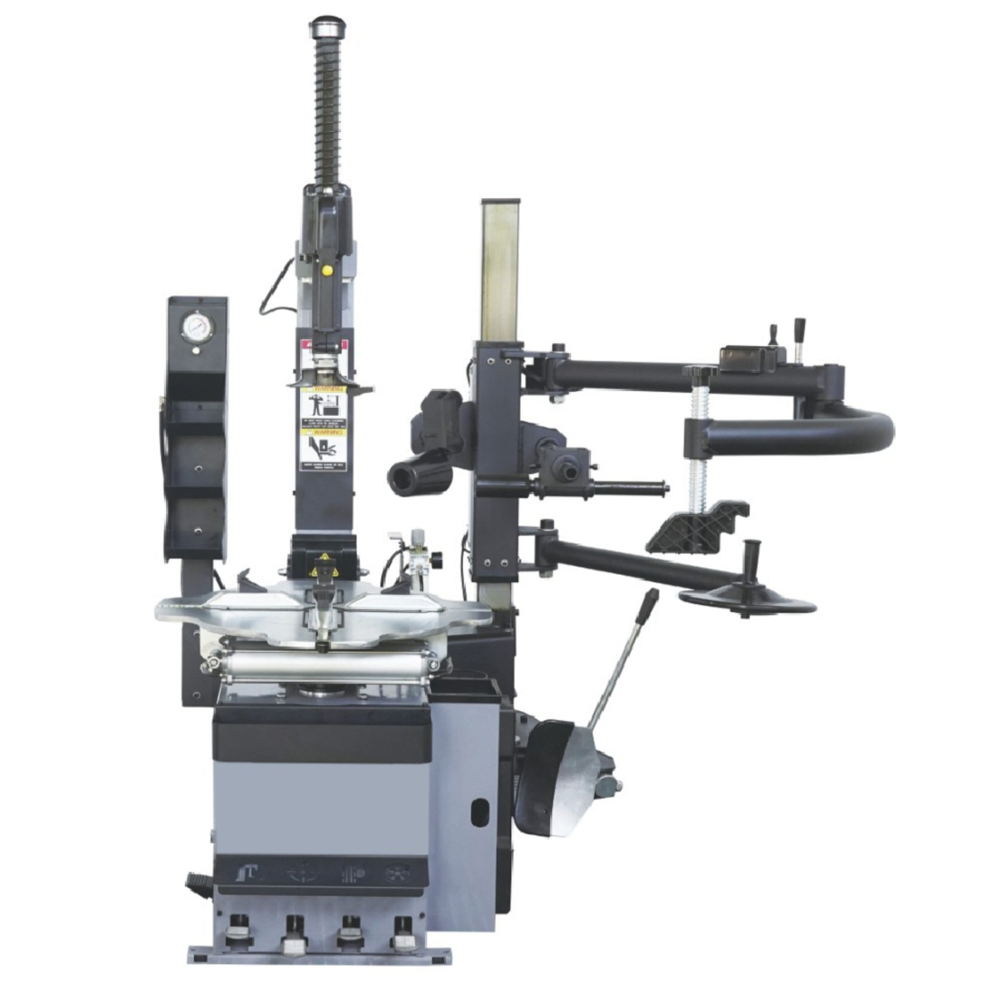

BL533+ACAP2002

1. Fully automatic tire changer, adopts tilt-back structure. Tilt back and forth are controlled and locked pneumatically.
2. The demount head is made of white steel, with high strength and more durable. 41mm diameter metal hex bar is able to handle all kinds of run-flat and low-profile tires.
3. Bigger machine cabinet and standard 24'' turntable greatly increase working strength. The turntable is made of special steel plates, not easy to deform. Double-sided polishing process makes the surface brighter and more beautiful.
4. The column is made of 4mm steel plates with high strength. Reinforced welding of the front of the column base enhances the overall strength, suitable for all kinds of tires' mounting and demounting.
5. Equipped with Φ80mm high-quality all-aluminum small cylinders under the turntable. The clamping force is 58kg higher than Φ75mm cylinders. Standard fully aluminum alloy bead breaker cylinder can reduce machine vibration and minimize friction, thereby extending the service life of the cylinder.
6. Equipped as standard with ACAP2002 helper arm. The pressing block presses tire center. The pressing roller prevents tires from scratches. 3-point pressing improves efficiency of the machine.
7. The arm is made of solid hexagonal steel to ensure the stability of stress points. The sliding square tube is four-side forged and polished, ensuring smooth and vibration-free operation under stress. All arm joints are installed with tapered roller thrust bearings, minimizing structural deformation under stress.
8. Four-angle adjustable pressing shovel saves labor for tire pressing. Enhanced shovel arm with quality shovel protective cover, and anti-skid bead breaker buffer.
9. Optional tire inflation device.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1000mm
Rim width:
3''-14''
Inside clamping:
12''-24''
Outside clamping:
10''-22''
Working pressure:
8-10bar
Bead breaker force:
2500kg
Noise level:
<70dB
N/G weight:
222/252kg
Package size:
1070*980*1200mm
