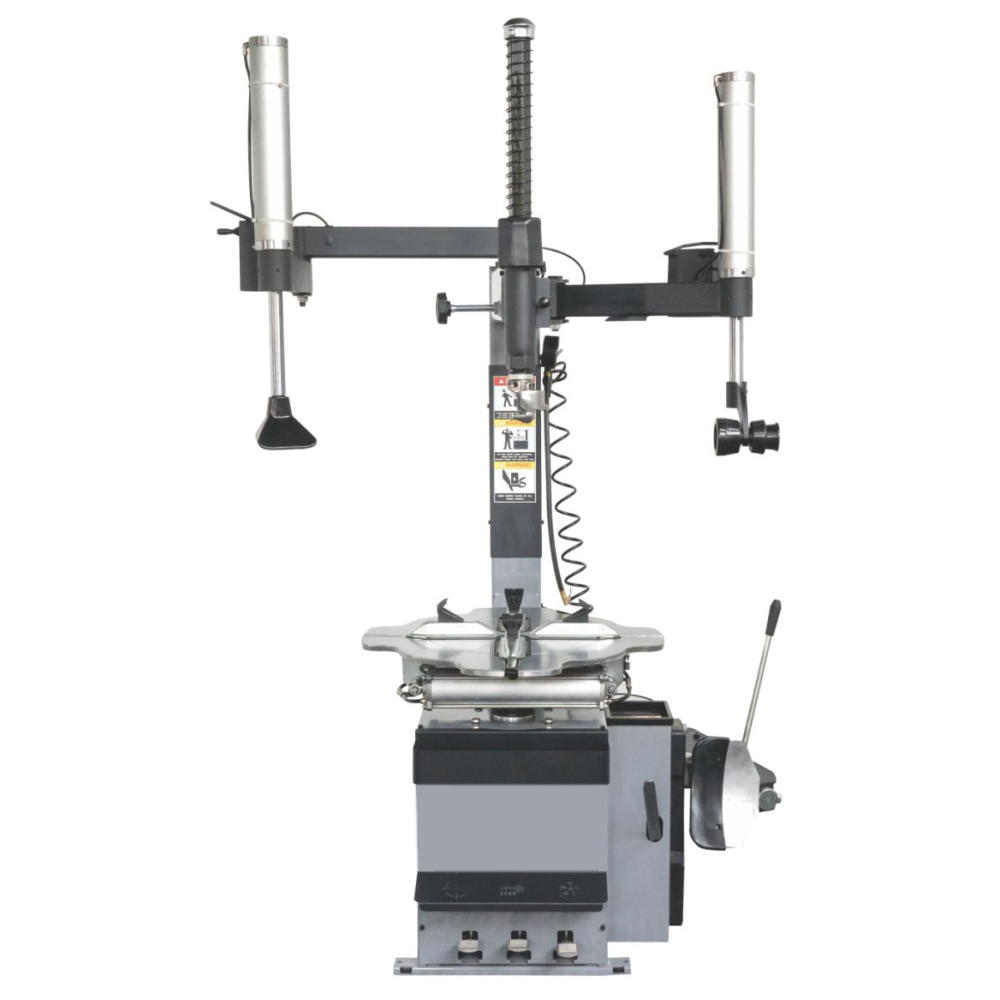

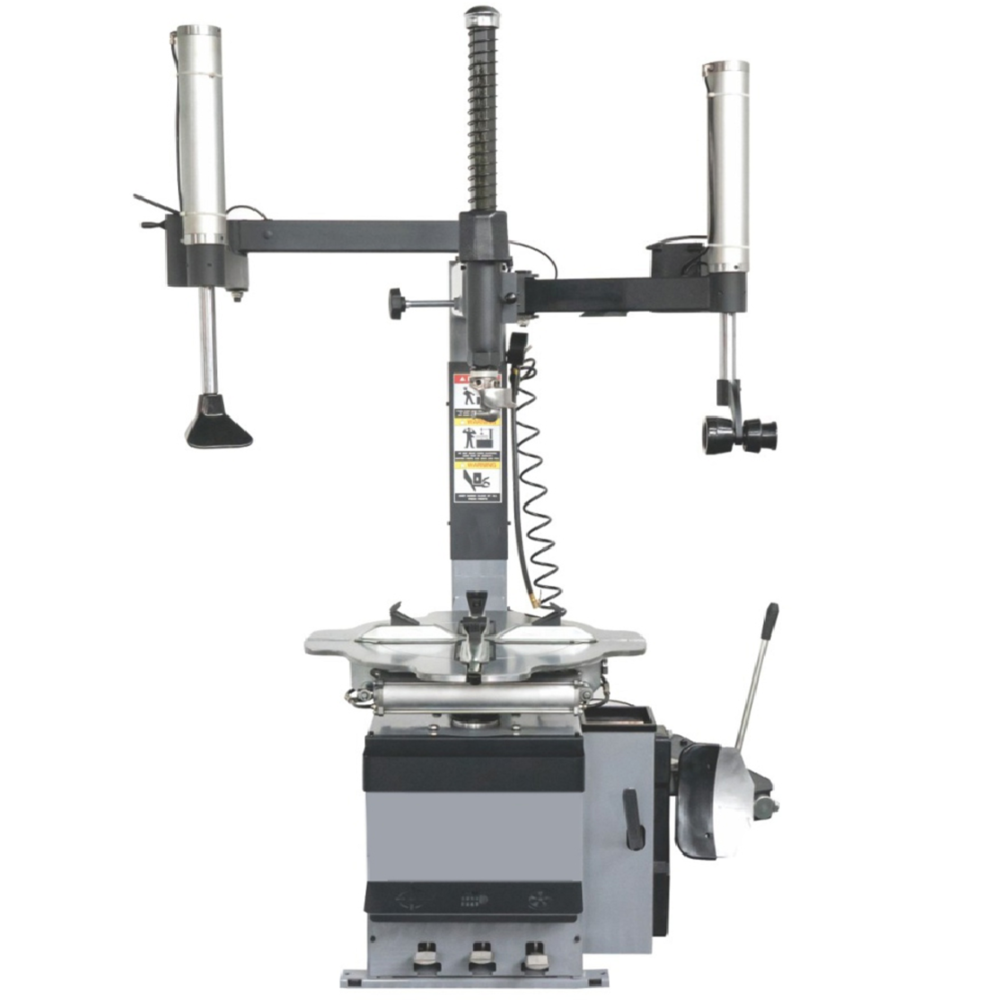

BL541

1. Semi-automatic, suitable for cars, motorcycles and passenger cars. Equipped with double pneumatic locking, convenient and quick in mounting and demounting.
2. High-quality demount head, which is made of white steel, with high strength and more durable. Equipped as standard with complete mount/demount head protectors.
3. 24" turntable is made of special steel plates, not easy to deform. Double-sided polishing process makes the surface brighter and more beautiful.
4. Larger working size, and powerful bead breaking force further enhance product performance.
5. Standard non-slip and durable jaw protectors make clamping easier and increase efficiency, avoiding scratches on the rim.
6. Equipped with Φ80mm high-quality all-aluminum small cylinders under the turntable. The clamping force is 58kg higher than Φ75mm cylinders.
7. 41mm diameter metal hex bar, able to handle all kinds of run-flat and low-profile tires with beautiful shape, strong and durable, needs no after-sales service.
8. Four-angle adjustable pressing shovel saves labor for tire pressing. Thickened shovel arm with quality shovel protective cover, and anti-skid bead breaker buffer.
9. Double helper arms installed at a higher position for a more flexible operation, are able to be locked at any position needed.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1140mm
Rim width:
3''-13''
Inside clamping:
12''-24''
Outside clamping:
10''-22''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/G weight:
228/257kg
Package size:
1080*890*870mm
