1. Environment-friendly and low noise design.
2. The column can be mounted at 45° degrees, which is suitable for different space options.
3. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength. Reinforcing bars are welded to the bottom of the column for greater strength.
4. Equipped with automatic arm lock release mechanism, with more security and high strength. Equipped with new locking teeth for stronger engagement.
5. The back of the carriage is welded with a lifting bar, which is locked with the locking hook of the main and secondary column, making it safer and more reliable.
6. Fully electric control design, more convenient for operation. The lifting, lowering and locking operations are controlled by buttons. The power unit is equipped with integrated low-voltage electronic control device.
7. Symmetric arms design, optional 2+3-stage or 3+3-stage lifting arms, which can meet more maintenance needs.
8. Equipped with a power unit with low power consumption, high efficiency, less failure and low noise.
9. Equipped with an oil-immersed motor. The motor and oil pump work in hydraulic oil, which prolongs the working life of the motor and oil pump.

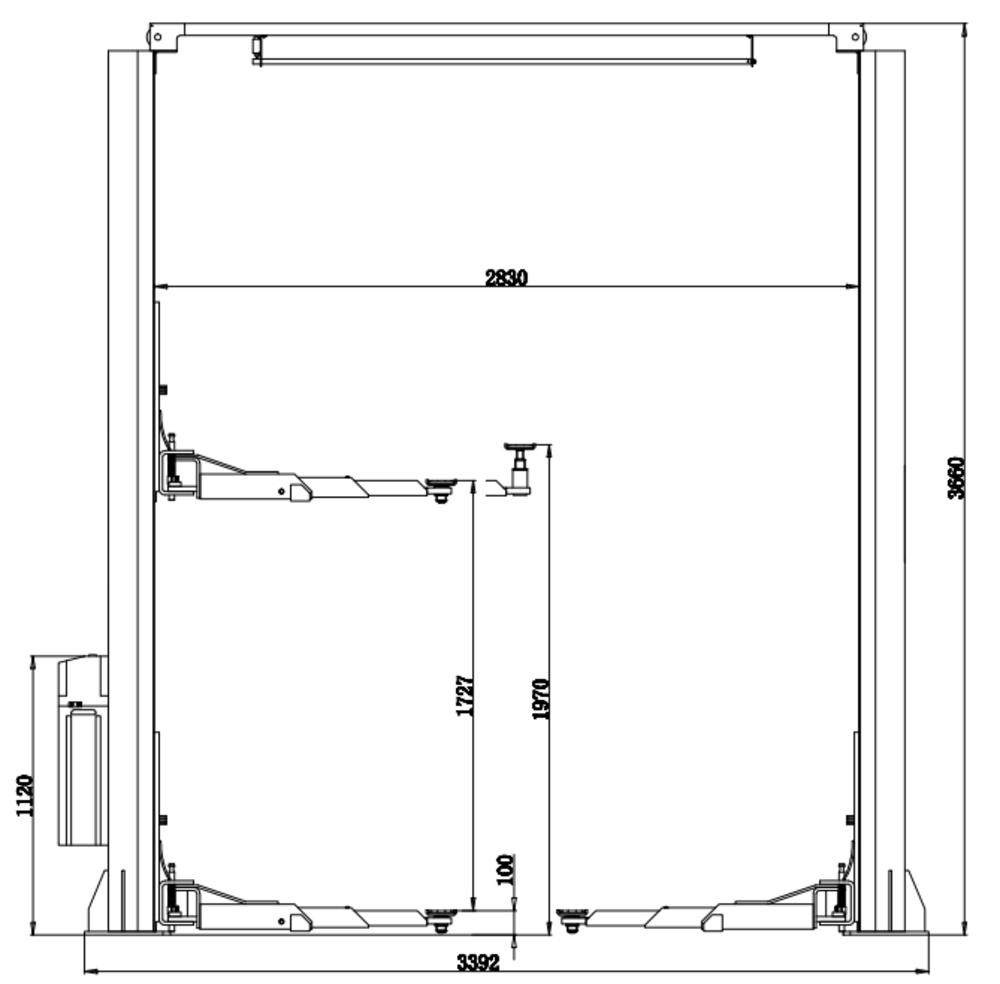

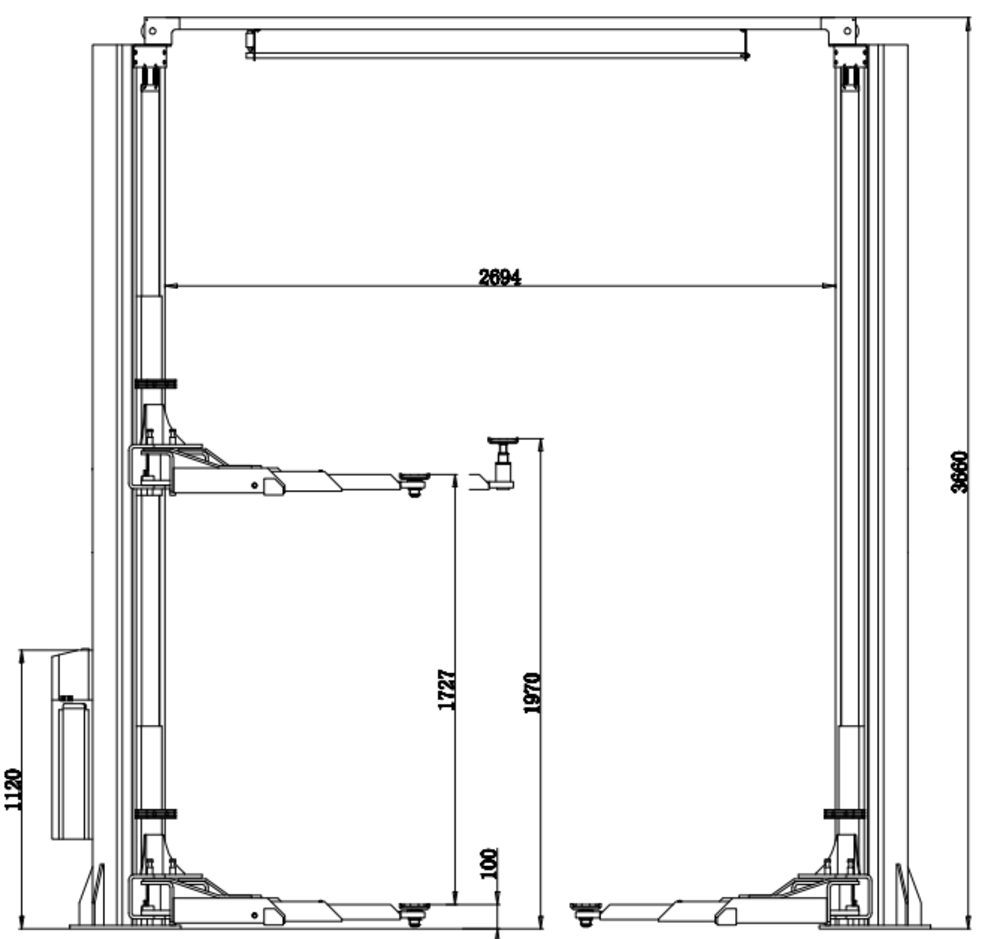

| Technical Parameters | | | Lifting height | | 100-1970mm | | Overall height | | 3660mm | | Overall width | | 3392mm | | Drive-thru width | | 2516mm
| Arm size
| | (3)550-1105mm
| Arm size
| | (2)876-1472mm
| Width between posts
| | 2830mm
| Lifting capacity
| | 4.5T |
|
