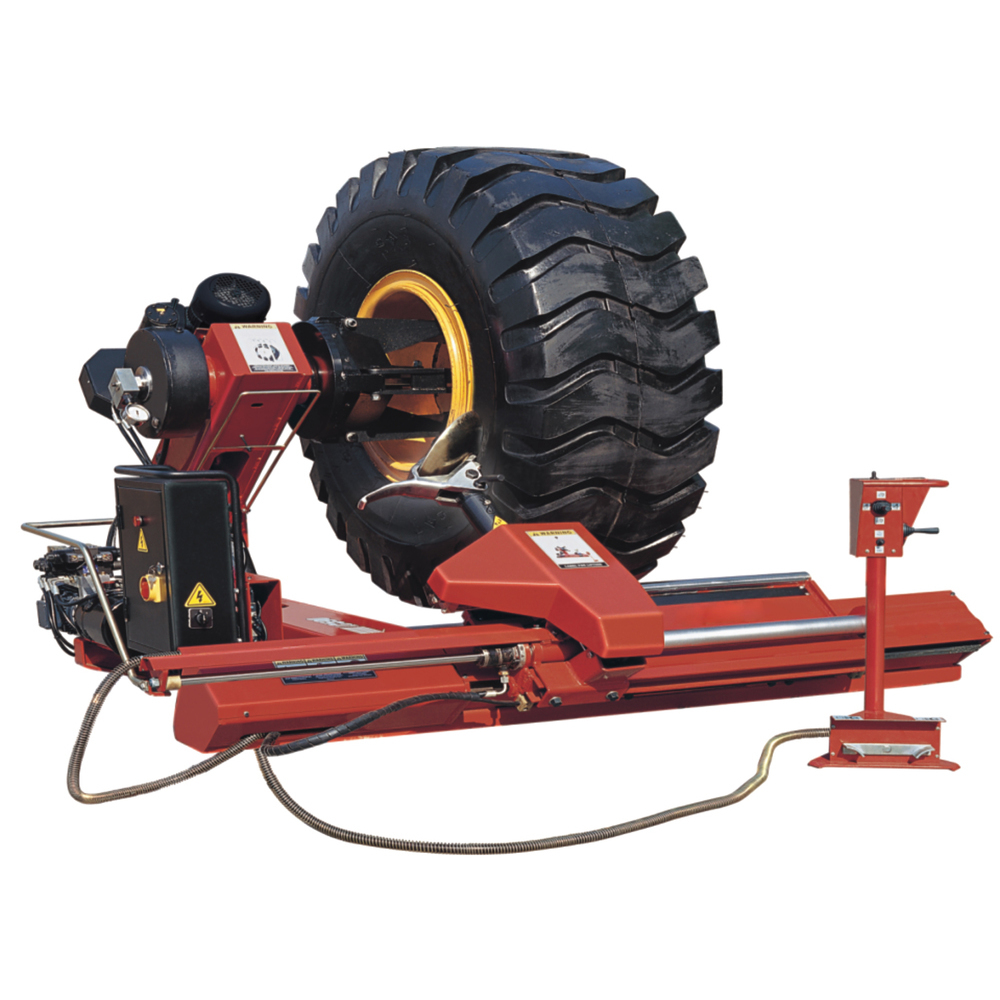

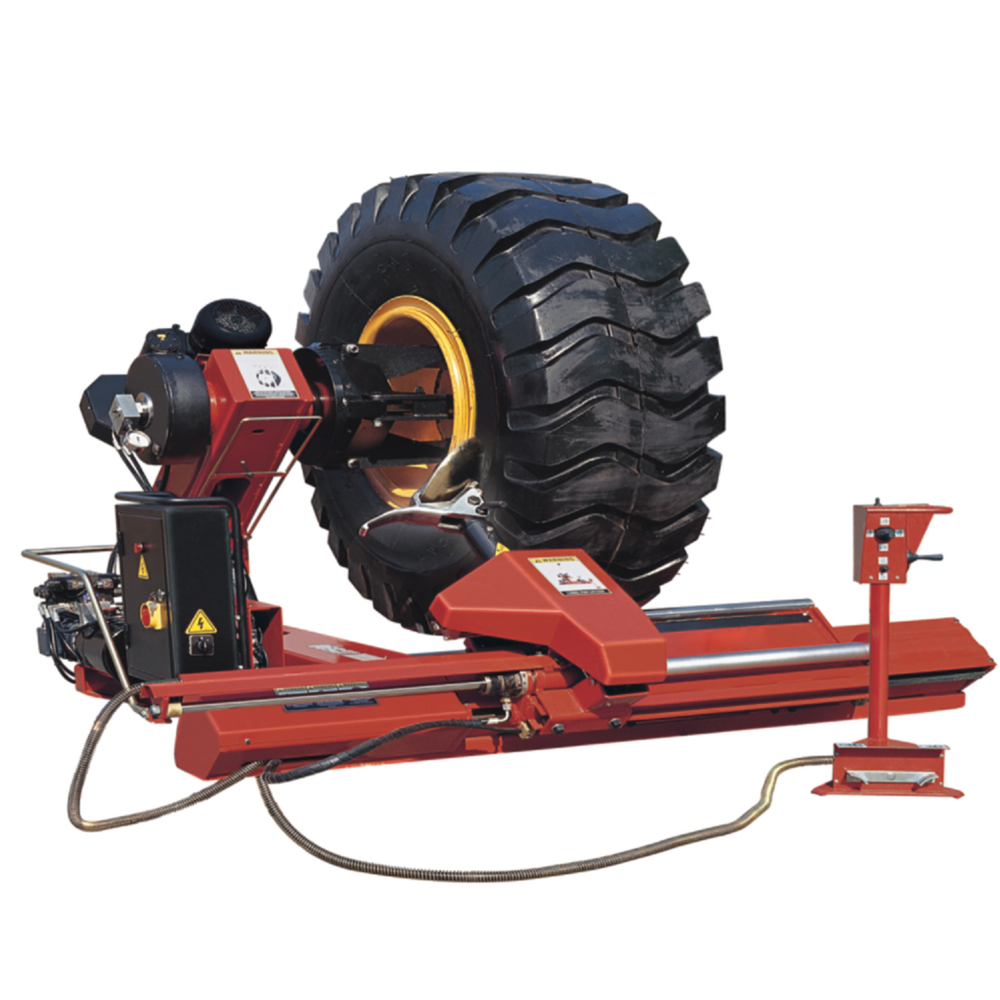

TRUCK TIRE CHANGER
Stability, durability and comfort are constant pursuits of TCS52, which will bring you luxurious experience in tire mounting and demounting.
Hydraulic and power components are imported from Italy.
1. Suitable for tires of trucks, agricultural & industrial vehicles (rim diameter: 14"–42"; max. wheel diameter/width: up to 2300mm/1100mm).
2. Centralized control: mobile console controls arms/tools/carriage.
3. With protective sheets, emergency micro-switch, and collision prevention.
4. The 4-jaw hydraulic chuck enables adjustable dual-speed rotation with secure clamping for alloy rims.
| Rim diameter： | 14''-42'' |
| Max. wheel width： | 1100mm |
| Max. wheel diameter： | 2300mm |
| Hydraulic power: | 50-130bar |
| Hydraulic station motor power: | 1.5KW 380V/3PH 50HZ |
| Main shaft motor power: | 2.4/3KW 380V/3PH 50HZ |
| Noise: | ≤75dB |
| Packing dimensions: | 2070x2280x1070 mm |
| Net weight: | 987kg |
| Gross weight: | 1252kg |
| Loading in 20/40 Ft.container: | 6/14 sets |
