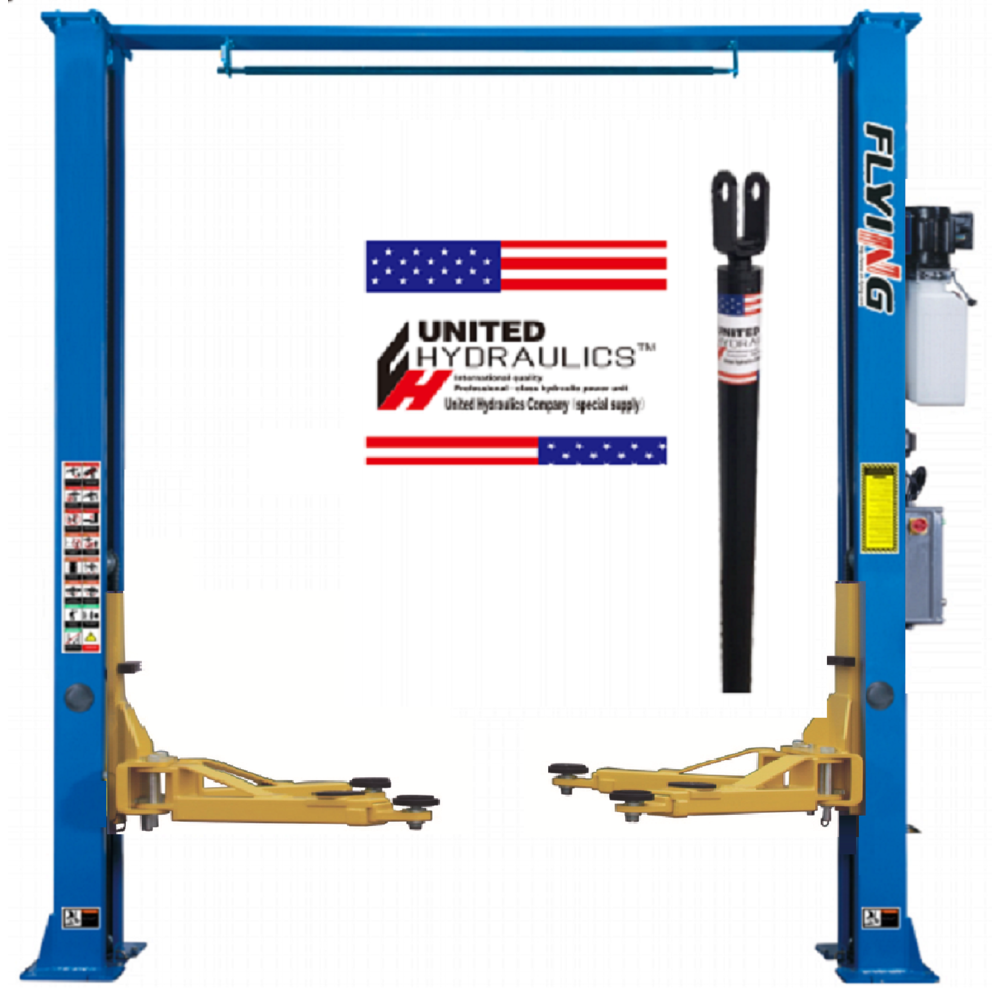

1. Screw type lifting pads with 50mm diameter adaptors as standard configuration.
2. Updated new arm lock is equipped with precise gears and self-release design which is reliable and stable.
3. Sliding adaptors as standard configuration to fit various kinds of vehicles. 4. Equipped with 2-stage arms.
5. Equipped with electric control box for operation and lock release.
6. Maintenance window for easy check and maintenance of carriage lock.
7. Equipped with door protectors.
8. Professional-class hydraulic cylinder and pump are supplied by USA United Hydraulic.
9. Ultra low min. height and clear floor design for easy accessing of vehicles.
10. 2-section columns optional.

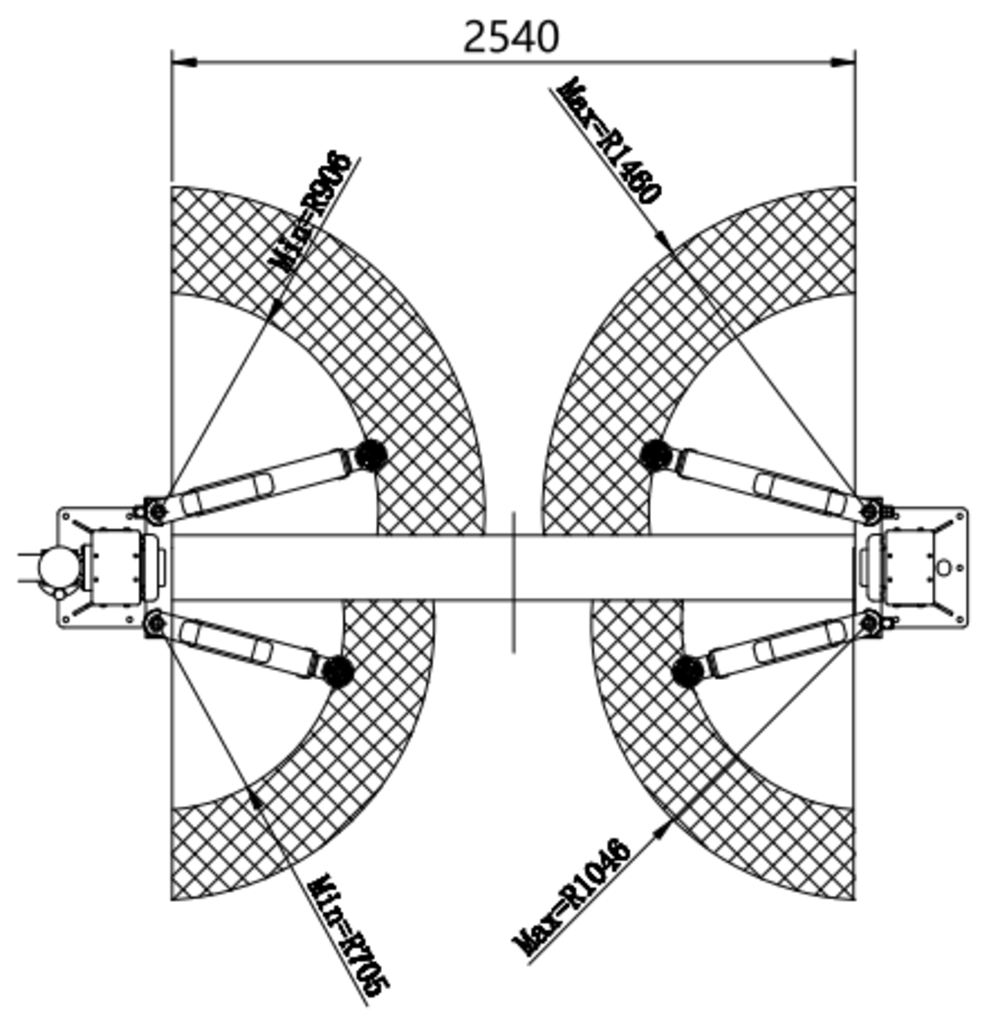

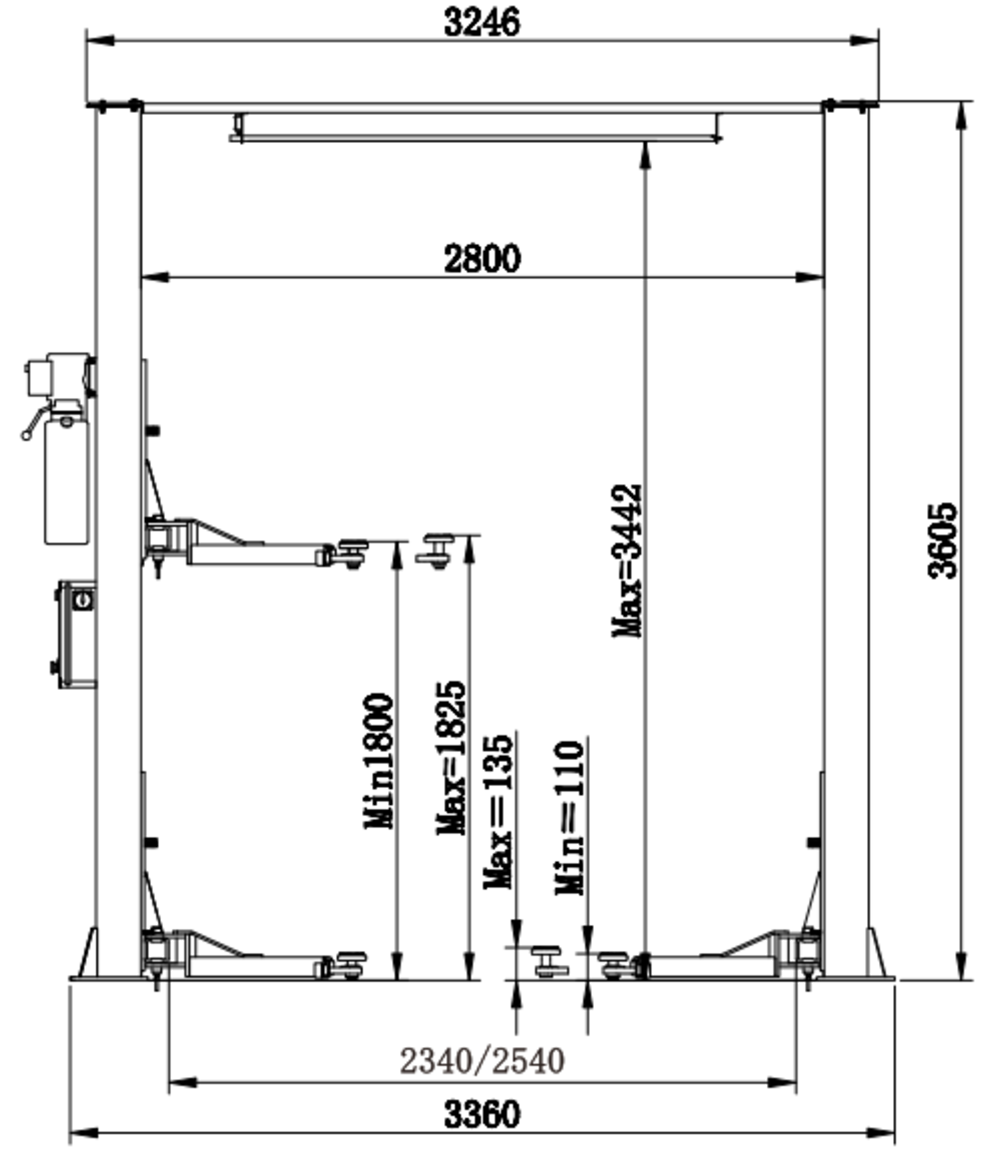

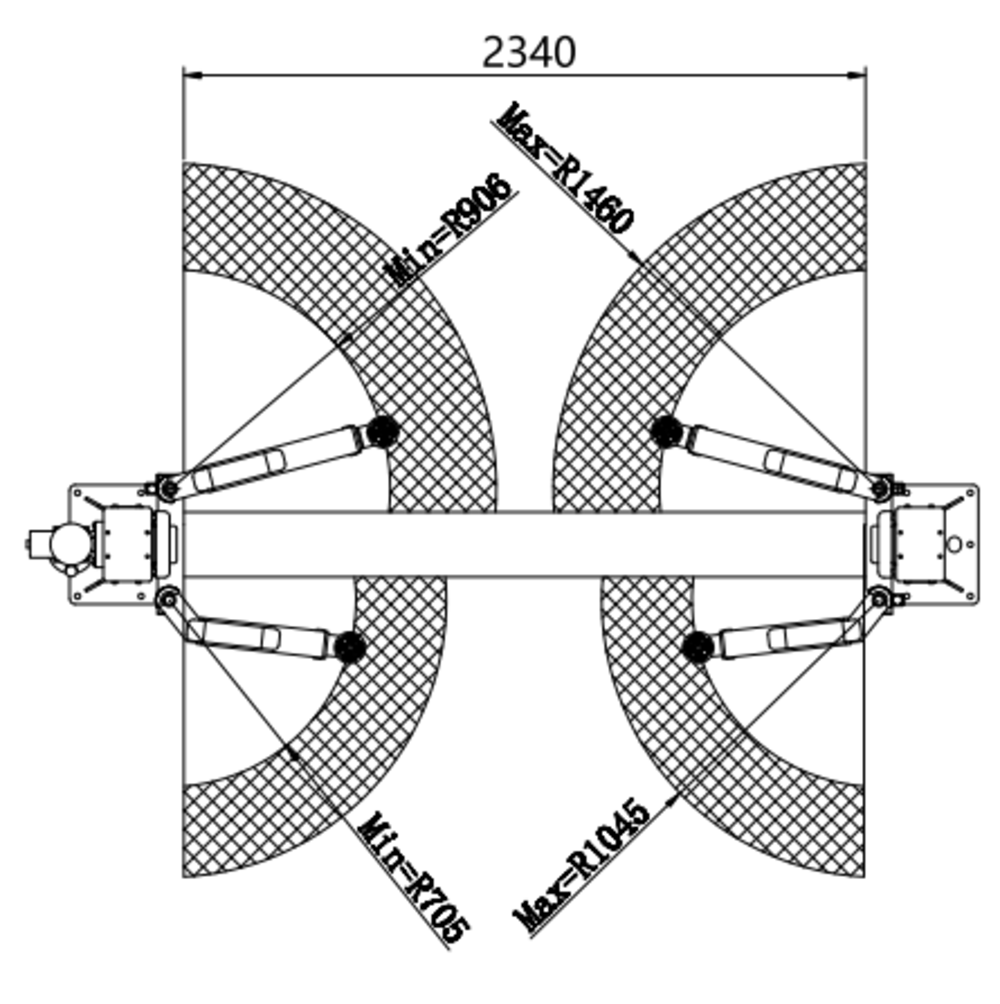

| Technical Parameters | | | Lifting height | | 1825mm | | Overall height | | 3605mm | | Overall width | | 3360mm | Arm size
| | 705-1046mm
| Arm size
| | 906-1460mm
| Pad height
| | 110mm
| Width between posts
| | 2800mm
| Lifting capacity
| | 4.0T |
|
