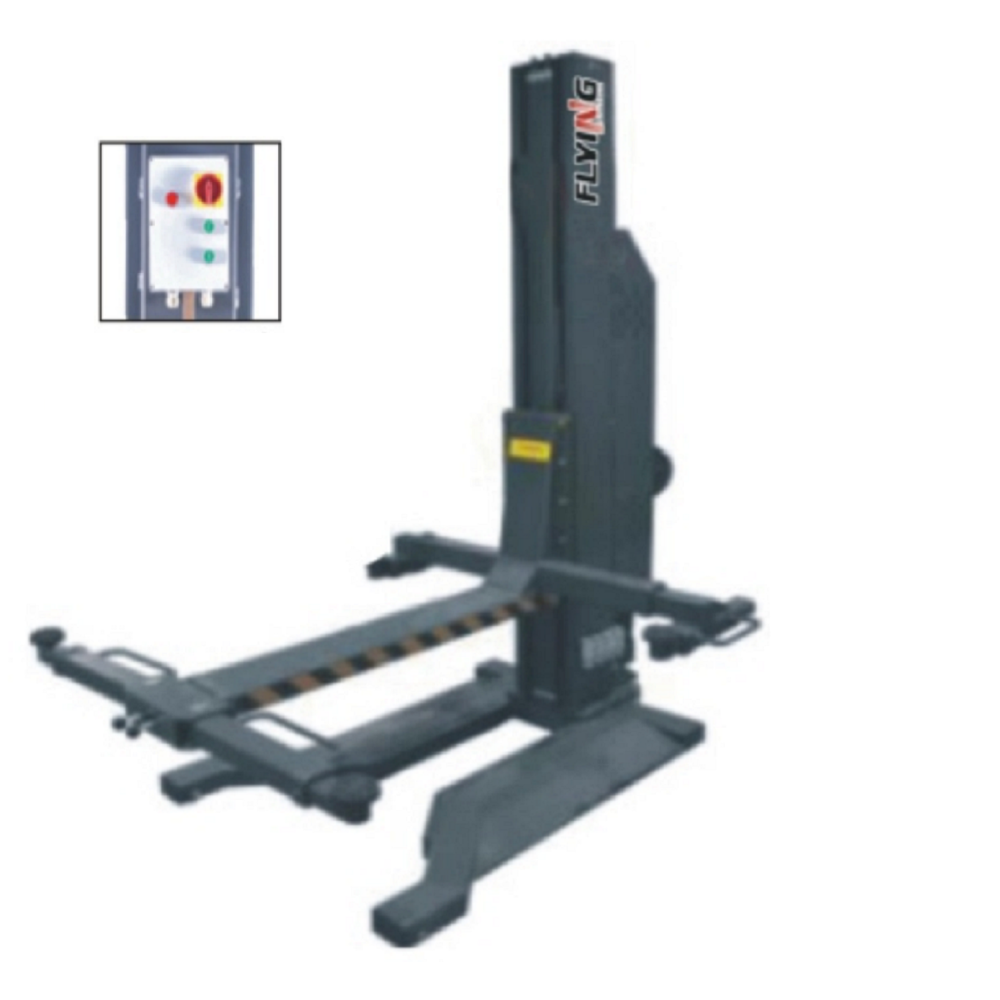

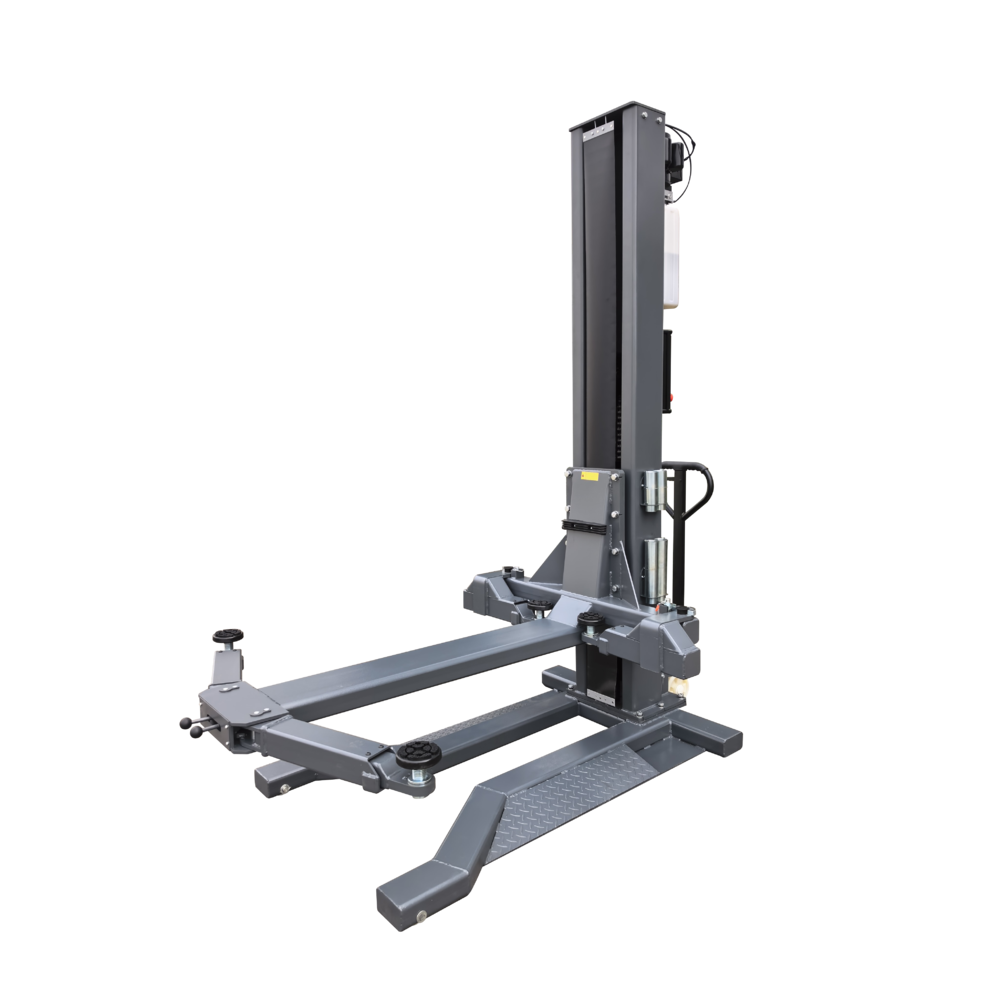

1. The movable 1-post vehicle lift is especially fit for indoor and outdoor grounds, with small work space requirements.
2. The column is made from Q345B high strength alloy steel, which will be hardly deformed in the future.

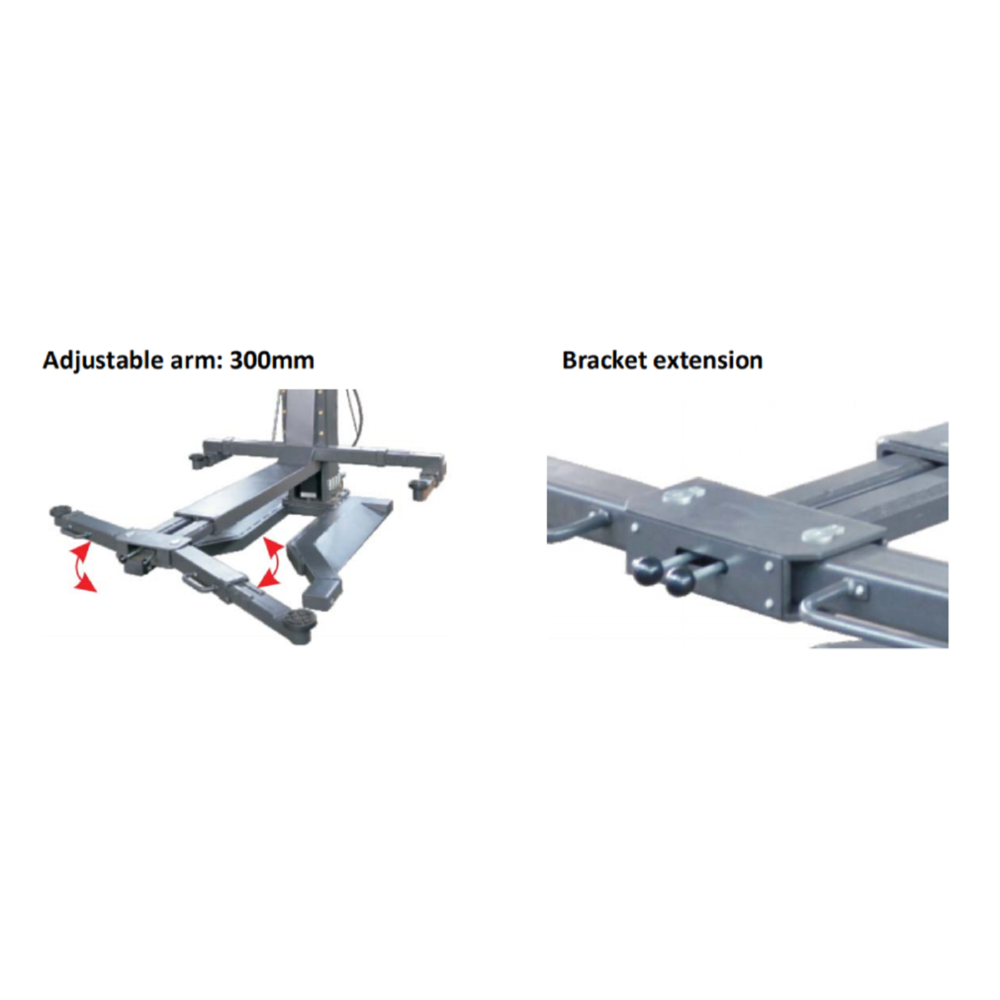

3. Telescopic arms with adapter extensions, suitable for more vehicles. The lifting arm is made from customized 25# seamless carbon steel pipe, more reliable and stable.

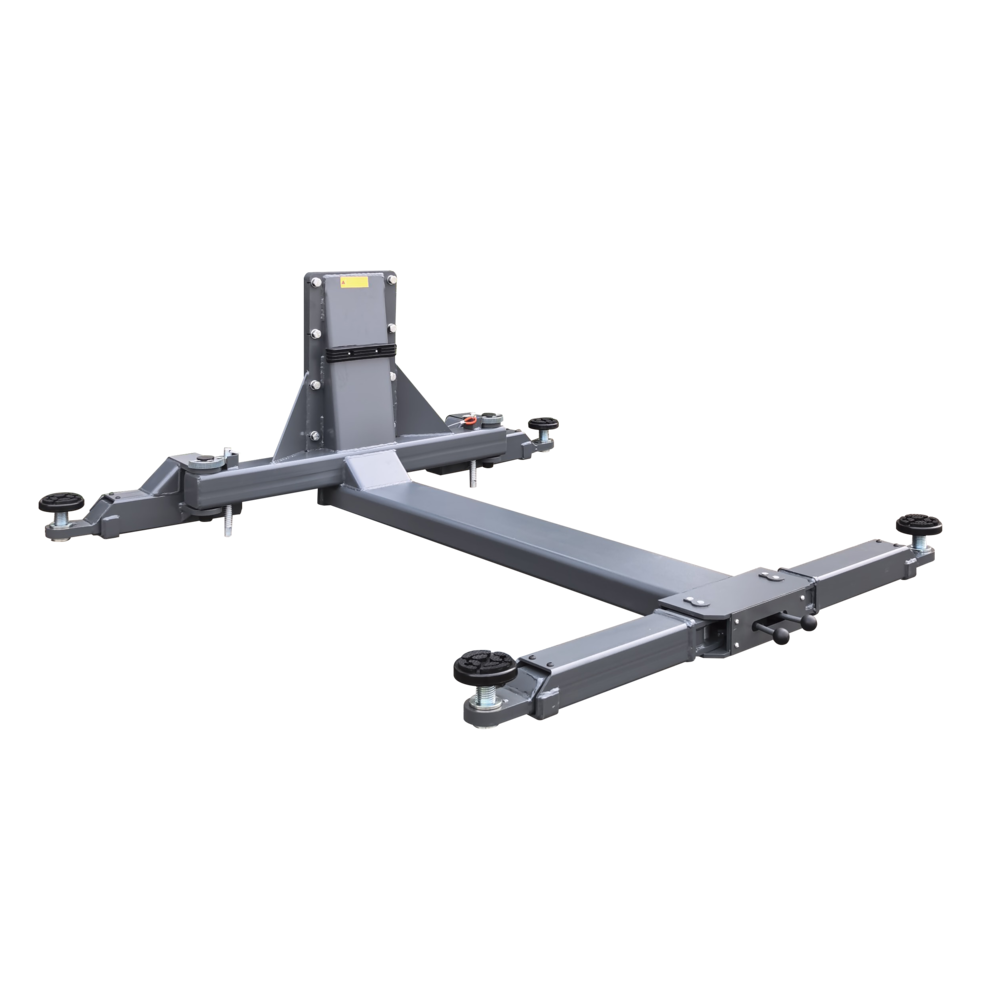

4. The base is made of 140MM*8MM rectangular pipe, which is reinforced with 30MM*8MM steel plates on both sides.
5. Equipped with electrical control box.
6. CE certified.
| Technical Parameters | | Lifting capacity
| | 2.7T | Lifting height
| | 1830mm | | Min. height | | 125mm | | Lifting time | | about 50s | | Power supply | | 220/110V
| G.W./N.W.
| | 966KG/898KG | | Package size | | 2000*1100*1100mm |
| |
|
|
