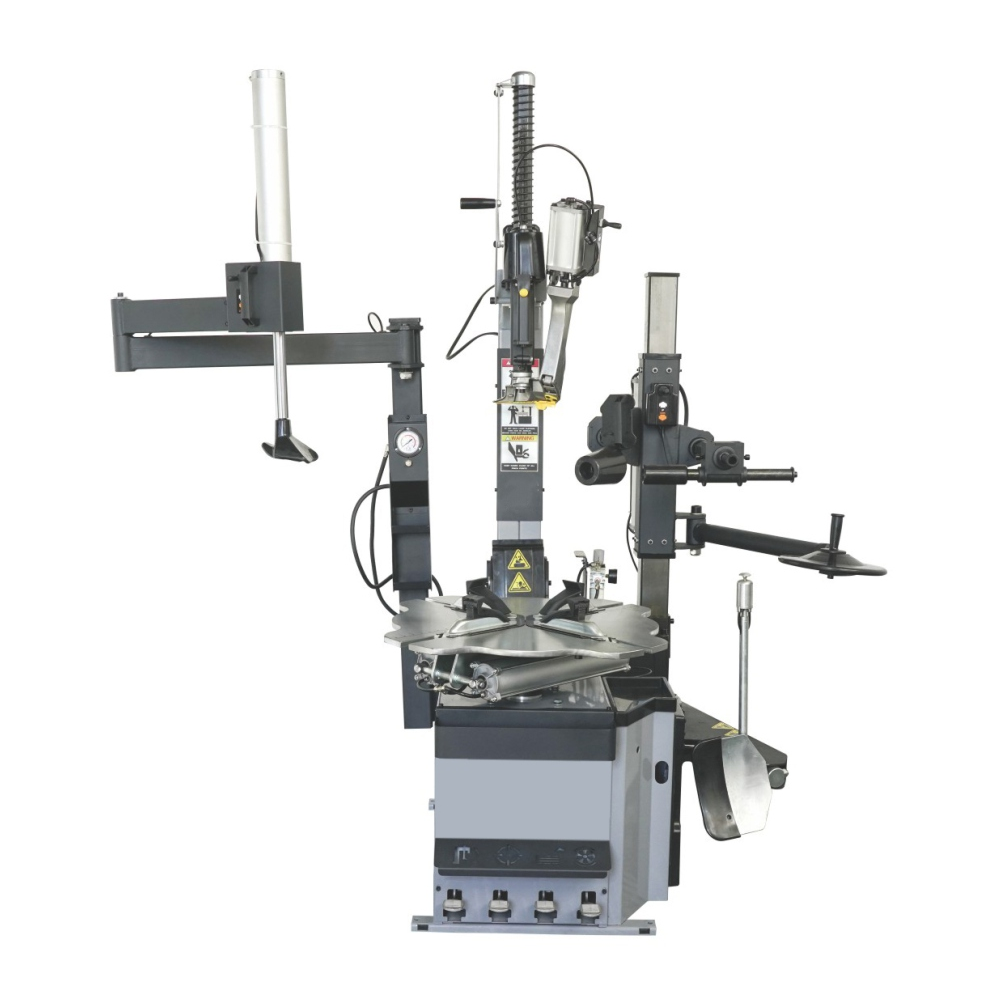

BL256T

1. Fully automatic tire changer, adopts tilt-back structure. Tilt back and forth are controlled and locked pneumatically.
2. Bigger machine cabinet and larger turntable (26'' and 28'' are optional) greatly increase working strength. The turntable is made of special steel plates, not easy to deform. Double-sided polishing process makes the surface brighter and more beautiful.
3. Double-bending column is made of 4mm steel plates with high strength. Reinforced welding of the front base of the column enhances the overall strength, suitable for all kinds of tires' mounting and demounting.
4. Equipped with Φ80mm high-quality full aluminum small cylinders under the turntable. The clamping force is 58kg higher than Φ75mm cylinders.
5. Standard Φ200mm fully aluminum alloy bead breaker cylinder can reduce machine vibration and minimize friction, thereby extending the service life of the cylinder.
6. Hand-controlled large shovel with patented design. Vertical palm pressing button and perfect press damping, combined with the pendular shovel, easy to operate.
7. Equipped with two helper arms, it is easy to mount and demount all kinds of low-profile, stiff-sidewall, oversized, and run-flat tires. The pressing block presses the tire center. The pressing roller prevents tires from scratches. 3-point pressing improves efficiency of the machine.
8. The mechanical arms are made of solid hexagonal steel to ensure stability of stress points. The sliding square tubes are four-side forged and polished, ensuring smooth and vibration-free operation under stress. All arm joints are installed with tapered roller thrust bearings, minimizing structural deformation under stress.
9. Equipped with new leverless control device, easy to operate, and suitable for mounting and demounting of all kinds of tires.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1120mm
Rim width:
3''-13''
Inside clamping:
13'-26''
Outside clamping:
12''-24''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/G weight:
360/416kg
Package size:
1150*1120*1280mm
