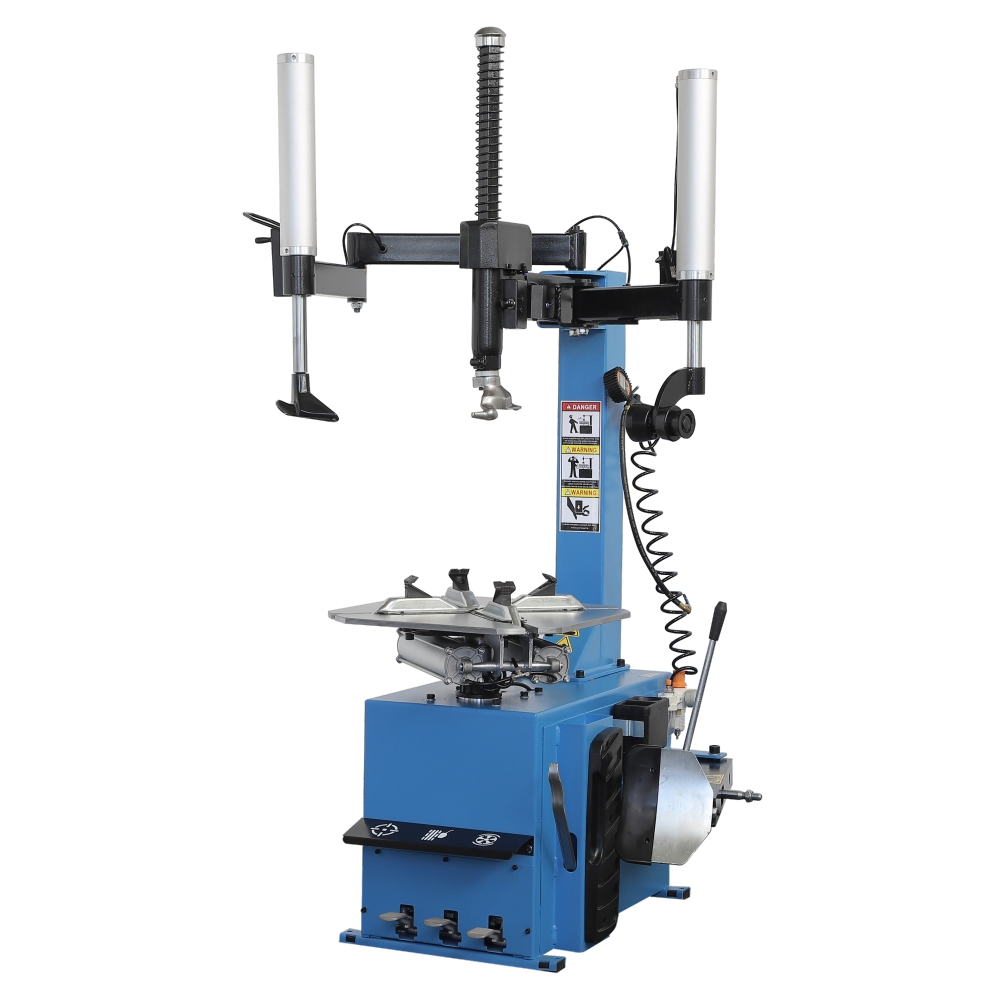

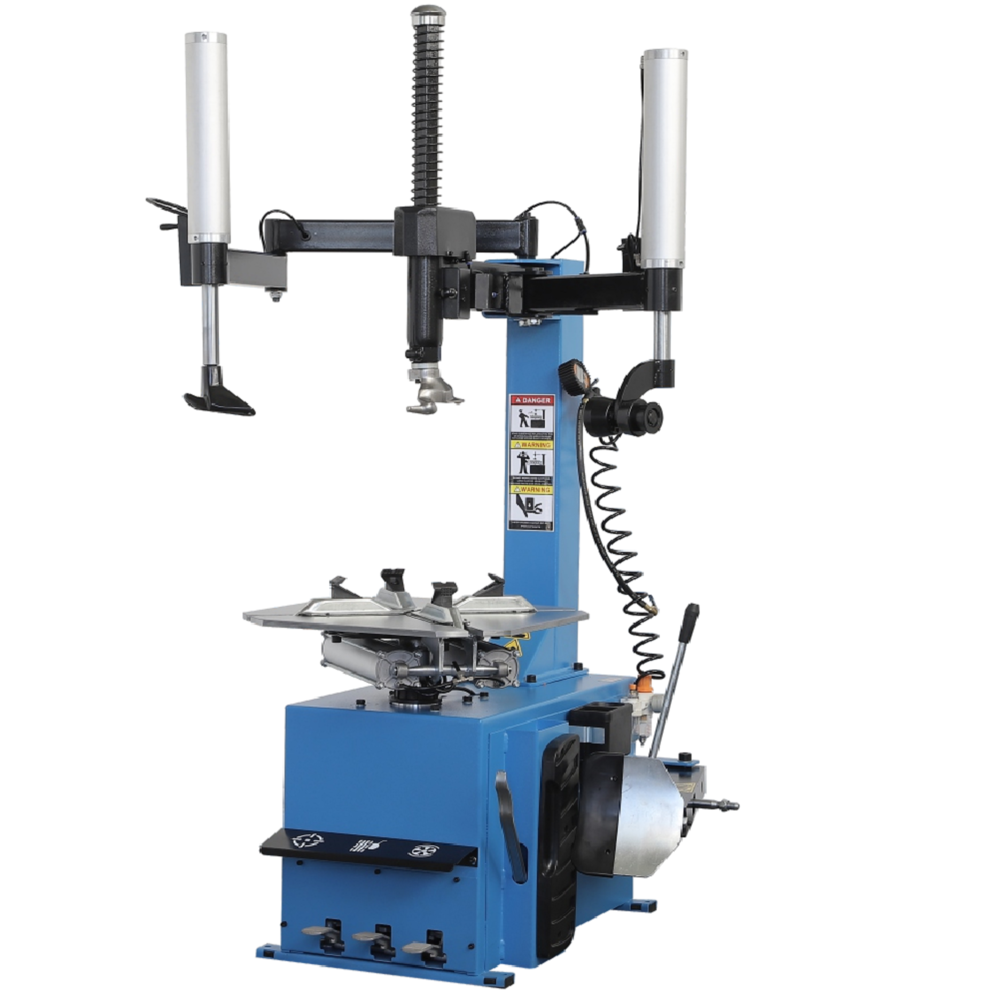

BL513D

1. Semi-automatic, suitable for cars, motorcycles and passenger cars. Pneumatic locking swing arms are convenient and quick in mounting and demounting.
2. High-quality demount head, which is made of white steel, with high strength and more durable. Equipped as standard with complete mount/demount head protectors.
3. Standard 24" turntable is made of special steel plates, not easy to deform. Double-sided polishing process makes the surface brighter and more beautiful.
4. Standard non-slip and durable jaw protectors make clamping easier and increase efficiency, avoiding scratches on the rim.
5. Equipped with Φ80mm high-quality all-aluminum small cylinders under the turntable. The clamping force is 58kg higher than Φ75mm cylinders.
6. All nozzle joints are copper joints.
7. 41mm diameter metal hex bar, able to handle all kinds of run-flat and low-profile tires with beautiful shape, strong and durable, needs no after-sales service.
8. Four-angle adjustable pressing shovel saves labor for tire pressing. Thickened shovel arm with quality shovel protective cover, and anti-skid bead breaker buffer.
9. The helper arms installed at a higher position for a more flexible operation, are able to be locked at any position needed.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1000mm
Rim width:
3''-13''
Inside clamping:
12''-24''
Outside clamping:
10''-22''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/G weight:
229/250kg
Package size:
985*770*860mm
