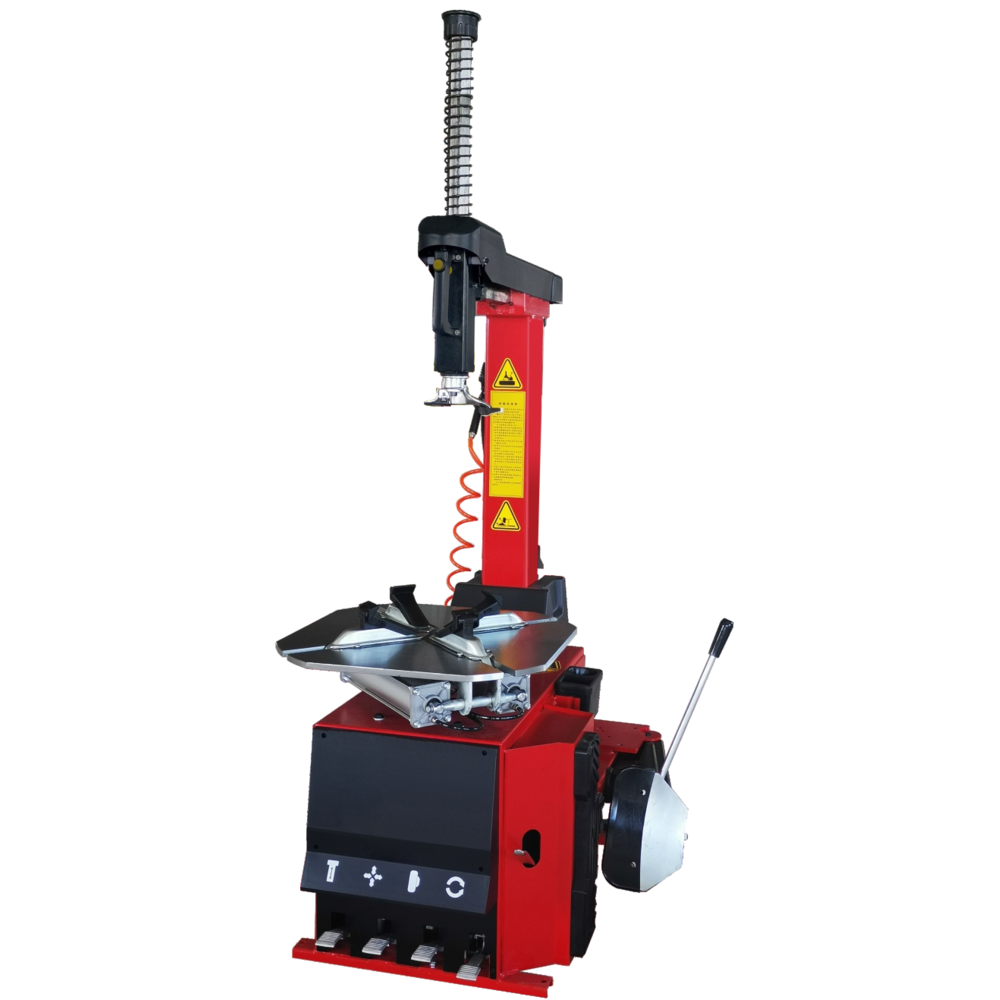

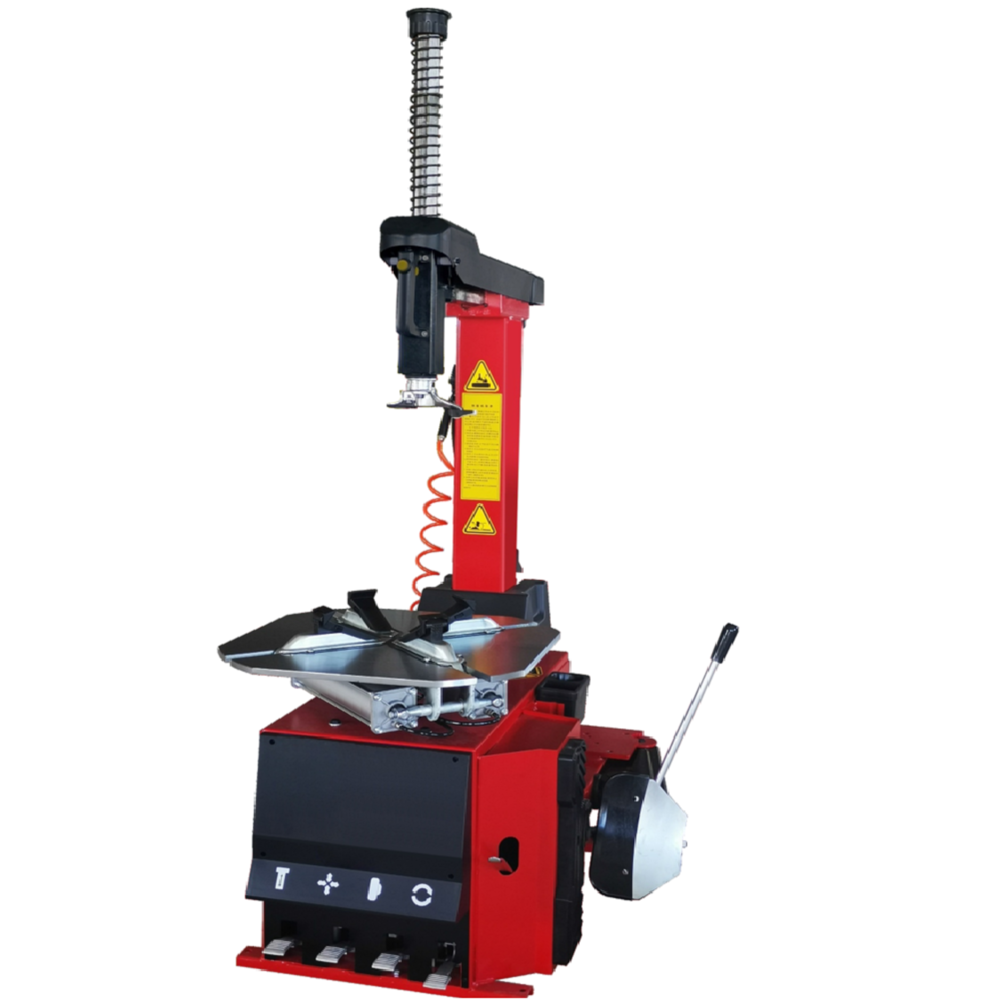

BL533R

1. Fully automatic tire changer, adopts tilt-back structure. Tilt back and forth are controlled and locked pneumatically.
2. The demount head is made of high-quality alloy steel, with high strength and more durable. Equipped as standard with complete mount/demount head protectors.
3. 40mm diameter metal hex bar, able to handle all kinds of run-flat and low-profile tires with beautiful shape, strong and durable, needs no after-sales service.
4. Bigger machine cabinet and standard 24'' turntable (26'' optional) greatly increase work strength. The turntable is made of special steel plates, not easy to deform.
5. Equipped as standard with complete mount/demount head protectors and non-slip and durable jaw protectors, which make clamping easier and increase efficiency, avoiding rim scratches.
6. Standard aluminum housing motor, with stronger power, and stable working capacity. Equipped as standard with a digital inflating gun, and all-aluminum pedal assembly.

7. Adjustable pressing shovel saves labor for tire pressing. Enhanced shovel arm with quality shovel protective cover, and anti-skid bead braker buffer.
8. Optional helper arm and tire inflation device, labor saving. The design protects steel rim from scratches and damages during operation.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1100mm
Rim width:
3''-16''
Inside clamping:
13''-24''
Outside clamping:
11''-21''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/G  weight:
175/192kg
Package size:
1000*800*950mm
