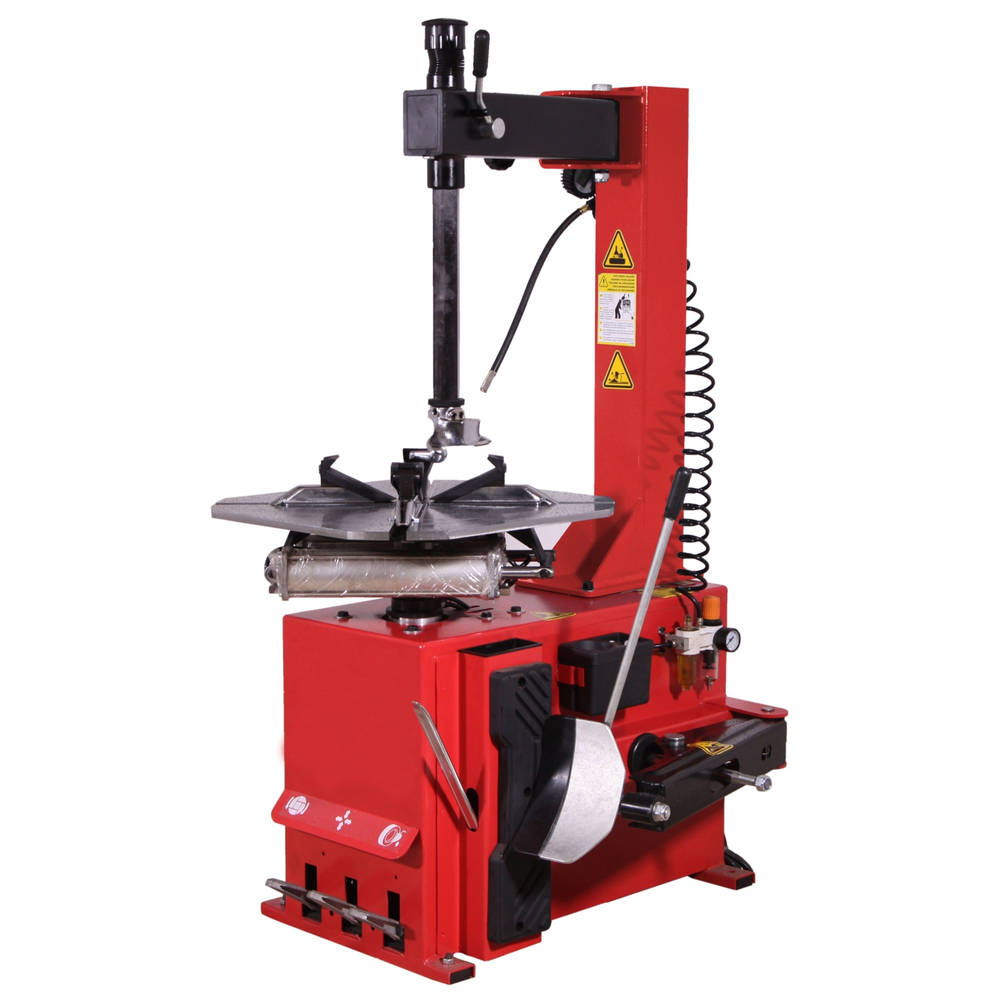

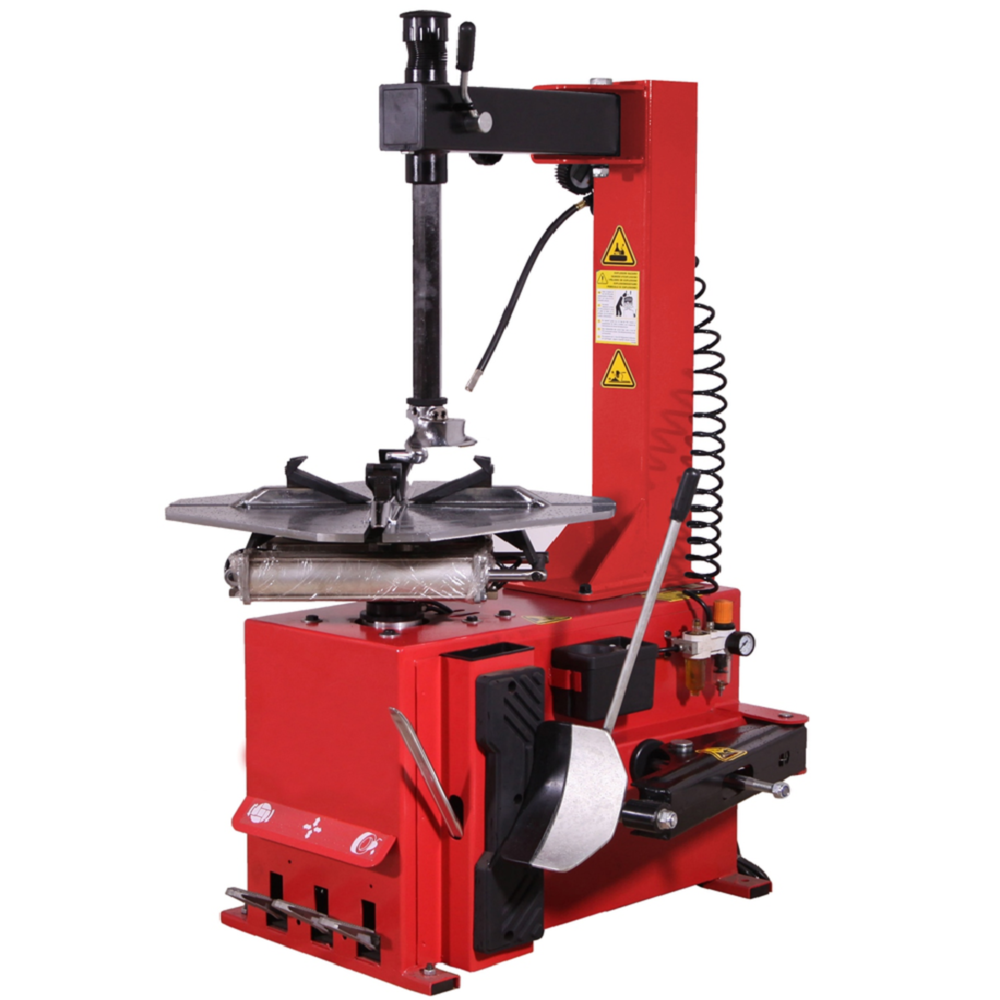

BL523R

1. Semi-automatic, suitable for cars, motorcycles and passenger cars. Manual locking swing arm is convenient and quick.
2. The demount head is made of high-quality alloy steel, with high strength and more durable. Equipped as standard with complete mount/demount head protectors.
3. Standard 24'' turntable with one-piece cast jaws, increases working strength. The turntable is made of special steel plates, not easy to deform.
4. Front and rear adjustable pressing shovel saves labor for tire pressing. Thickened shovel arm with quality shovel protective cover, and anti-skid bead breaker buffer.
5. Standard aluminum housing motor as standard, with stronger power, and stable working capacity. Equipped as standard with a digital inflating gun, and all-aluminum pedal assembly.
6. 40mm diameter metal hex bar, able to handle all kinds of run-flat and low-profile tires with beautiful shape, strong and durable, needs no after-sales service.
7. Standard fully aluminum alloy bead breaker cylinder can reduce machine vibration and minimize friction, thereby extending the service life of the cylinder.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
960mm
Rim width:
3''-16''
Inside clamping:
12''-24''
Outside clamping:
10''-21''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/G weight:
188/210kg
Package size:
970*770*900mm
