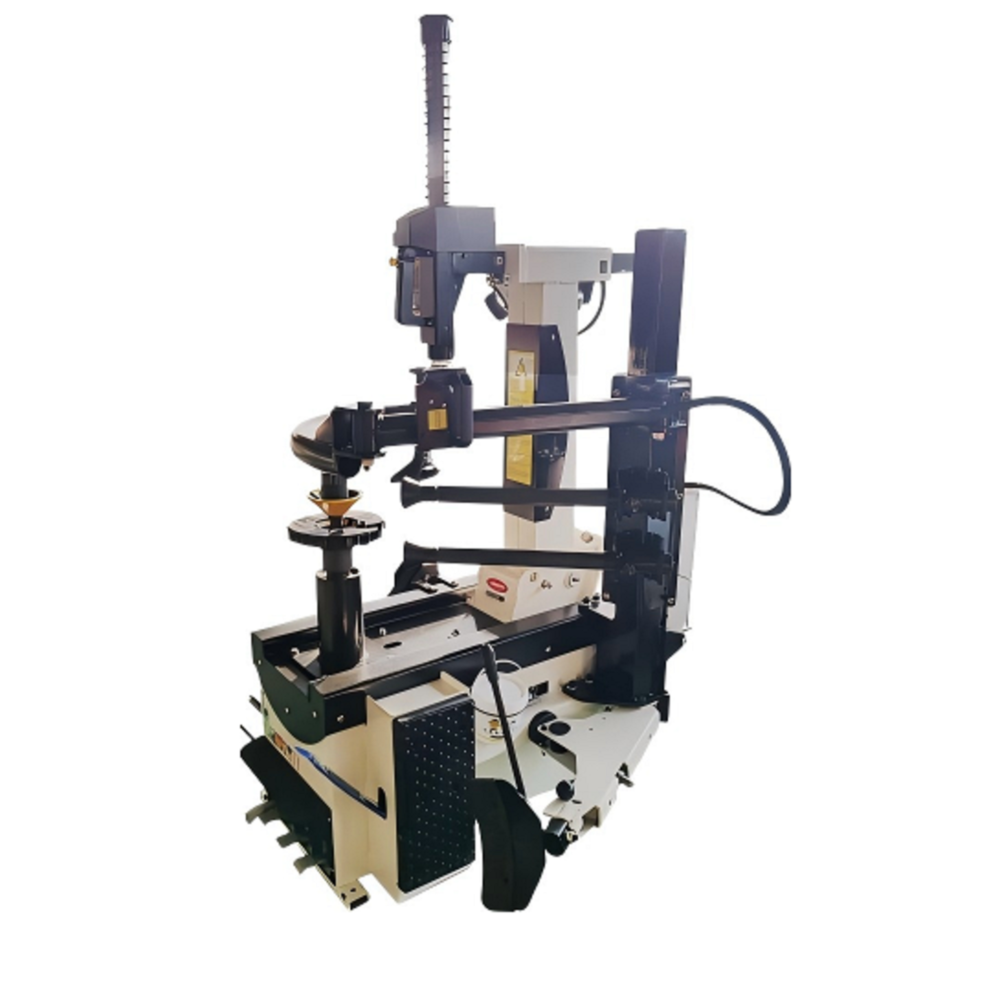

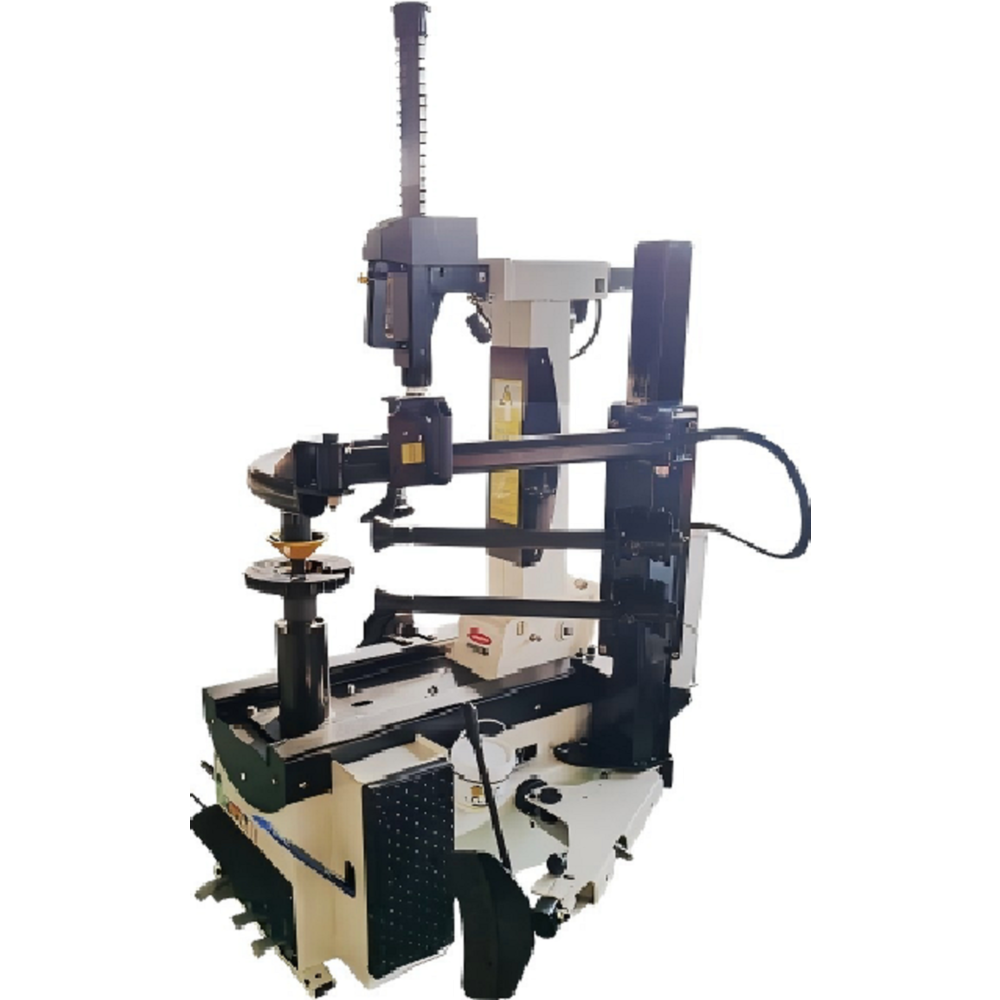

BL590

1. No turntable structure, accommodates more tire specifications.
2. Combined box structure, strengthened design of box column, with centre hole locking, reduces deformation during operation, effectively protecting the rim.
3. Title-back column, more convenient to operate.
4. Enlarged hexagonal steel and hexagonal steel pneumatic locking structure provide better stability when working with the demount head.
5. Optional stepless speed change motor and equipped aluminium alloy high-precision gearbox provide better operability for the spinning unit.
6. Equipped with a helper arm, it saves time and effort to demount stiff-sidewall and low-profile tires, and the operation is simple and fast.
7. Magnesium aluminum alloy explosion-proof oil mist device, more accurate and durable.
8. Optional booster.

Model:
BL590
Motor power:
0.85kw
Power supply:
220V
Max. wheel diameter:
47''(1200mm)
Max. wheel width:
15"(381mm)
Clamping:
13''-30''
Working pressure:
8-10bar
N/G weight:
320/339kg
Noise level:
≤70dB
Package size1:
1150*920*950mm
Package size2:
1400*450*400mm
