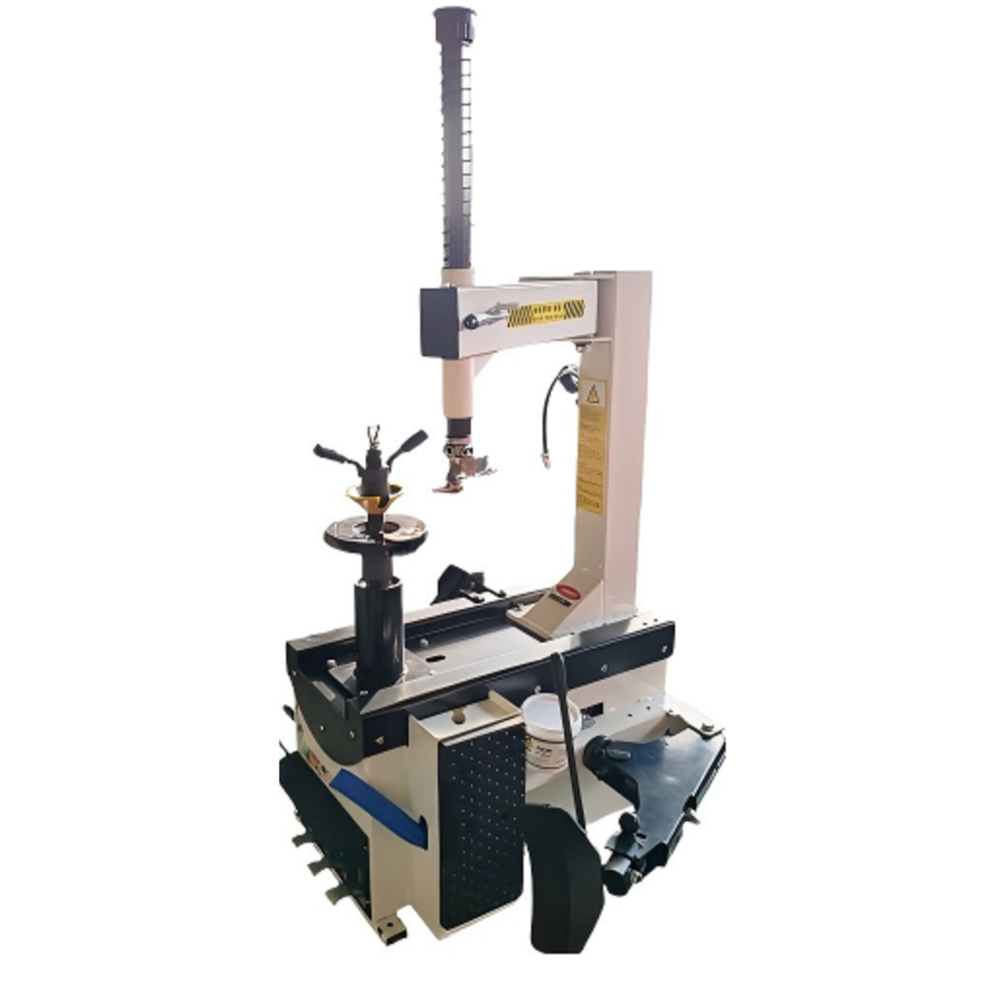

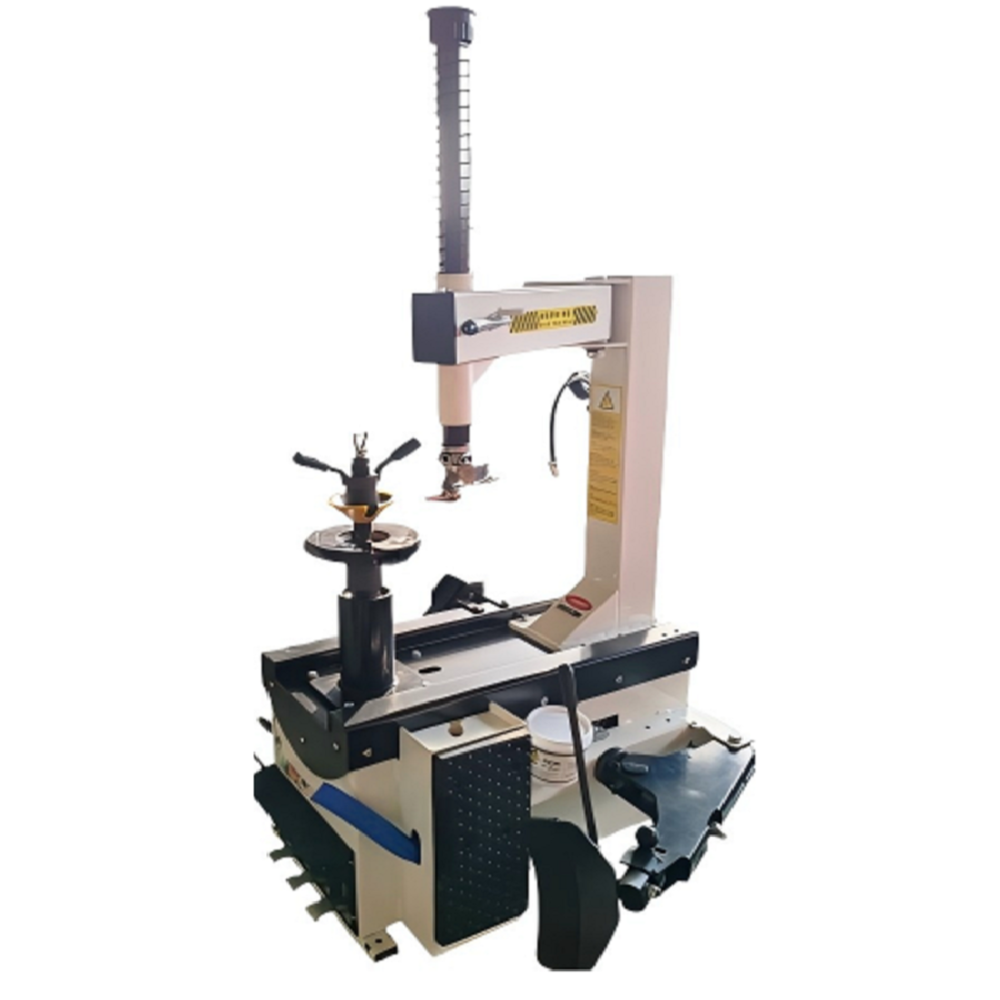

BL490

1. No turntable structure, accommodates more tire specifications.
2. Combined box structure, strengthened design of box column, with centre hole locking, reduces deformation during operation, effectively protecting the rim.
3. Enlarged swing arm structure reduces mechanical deformation of the swing arm.
4. Enlarged hexagonal steel and hexagonal steel pneumatic locking structure provide better stability when working with the demount head.
5. Optional stepless speed change motor and equipped aluminium alloy high-precision gearbox provide better operability for the spinning unit.
6. Optional helper arm makes mounting and dismounting of explosion-proof tires more labor-saving and convenient.
7. Magnesium aluminum alloy explosion-proof oil mist device, more accurate and durable.
8. Optional booster.

Model:
BL490
Motor power:
0.85kw
Power supply:
220V
Max. wheel diameter:
47''(1200mm)
Max. wheel width:
15"(381mm)
Clamping:
13''-30''
Working pressure:
8-10bar
N/G weight:
316/329kg
Noise level:
≤70dB
Package size 1:
1150*920*950mm
Package size 2:
657*750*200mm
