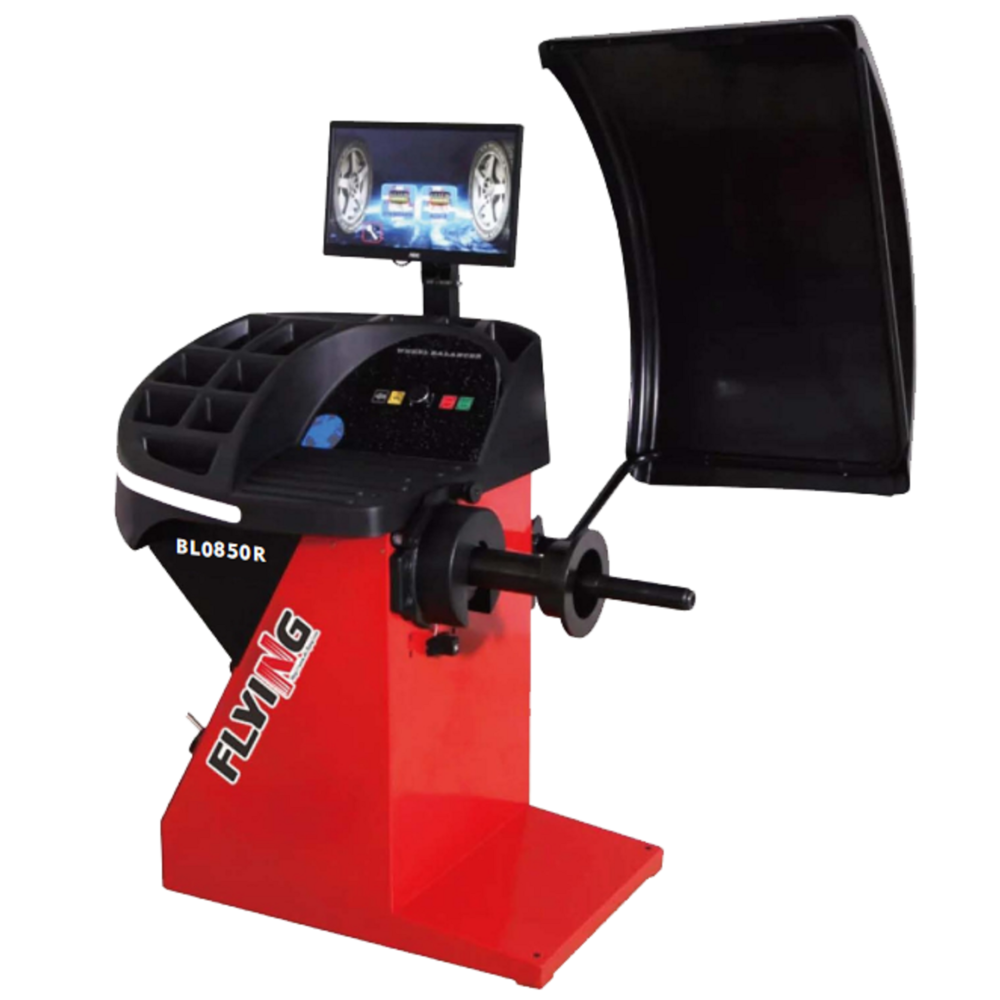

WHEEL BALANCER
Ushering in the LCD era, this wheel balancer moves beyond the limitations of LED displays, providing a vivid and immersive visual experience.
1. The machine is equipped with 19’’ LCD display for easy and clear operation.
2. The wheel guard is made of high-quality export-grade plastic.
3. Magnetic levitation drive module replaces traditional belt drive for enhanced performance and durability.
4. The machine has DYN/STA/OPT and different ALU balancing modes.
5. The 40mm diameter balancing shaft is compatible with standard accessories.
6. Automatic acquisition of rim diameter and distance. Self-calibration and self-disgnostic function ensures accurate and convenient operation.
7. Laser light indicates the position for weight placement, fast and convenient.
8. Optional radar device is available for automatic measurement of tire width.
| Rim diameter | 10''-30'' | ||||||
| Rim width | 1.5''-20'' | ||||||
| Max. wheel weight | 80kg | ||||||
| Max. wheel diameter | 1080mm | ||||||
| Precision | ±1g | ||||||
| Motor power | 0.18~0.32kw | ||||||
| Power supply | 220V | ||||||
| Balancing time | 8s | ||||||
| Package size | 1150*880*1170mm | ||||||
| Net weight | 105kg | ||||||
| Gross weight | 120kg |
