1. Advantageous design with no floor plate, allowing for free entry and exit of vehicles with no limitation to the height of chassis.
2. Aesthetic whole machine design, with the strength advantage of clear floor lifts.
3. A photoelectric strong cross-beam laser device is used. This height limit is more sensitive than traditional limit devices.
4. High strength arms specially made with seamless tubes with tie bars, are not only strong, but also allow for smooth movement of stages of arms. The whole machine looks more aesthetic and novel.
5. Special oil cylinder structure, featuring: good guidance, high strength, more vertical automatic adjustment without co-vibration.
6. Equipped with a leading quiet power unit, bringing users comfort.
7. Single side release structure, making unlocking operations convenient.

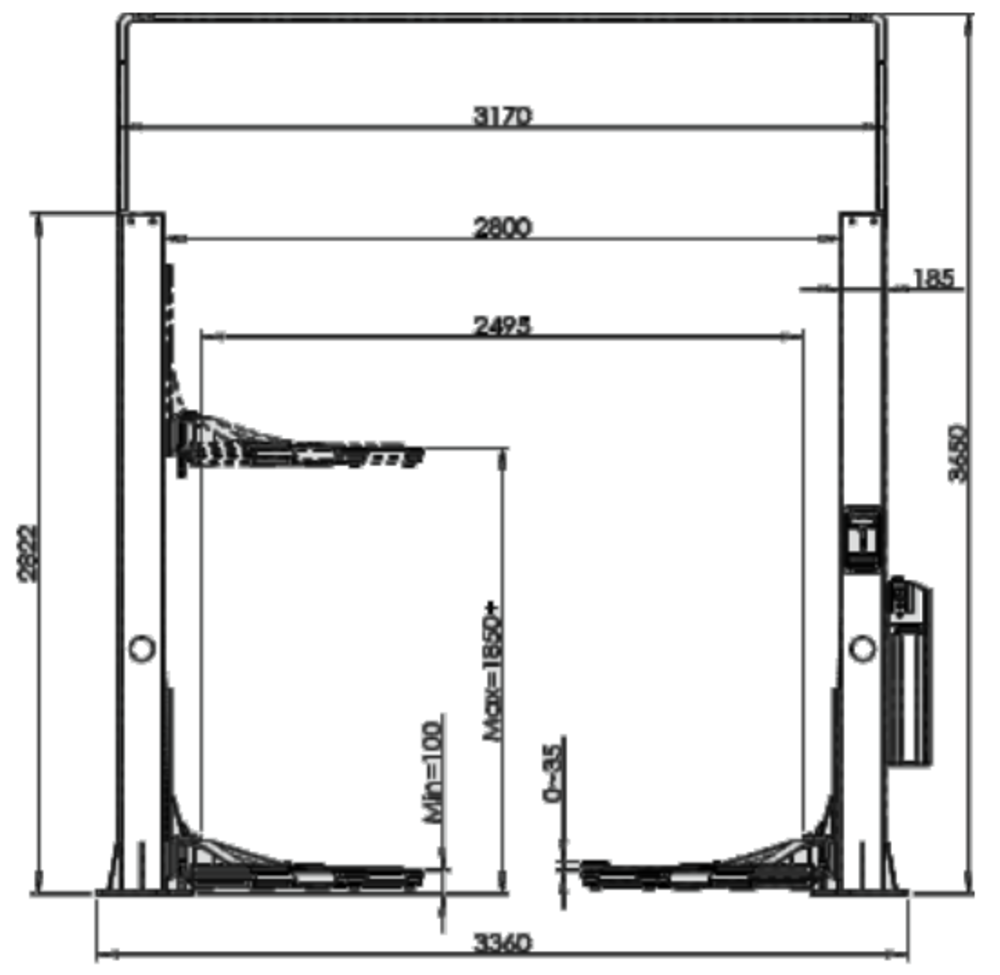

| Technical Parameters | | | Lifting height | | 100-1850mm | | Overall height | | 3650mm | | Overall width | | 3360mm | | Drive-thru width | | 2495mm

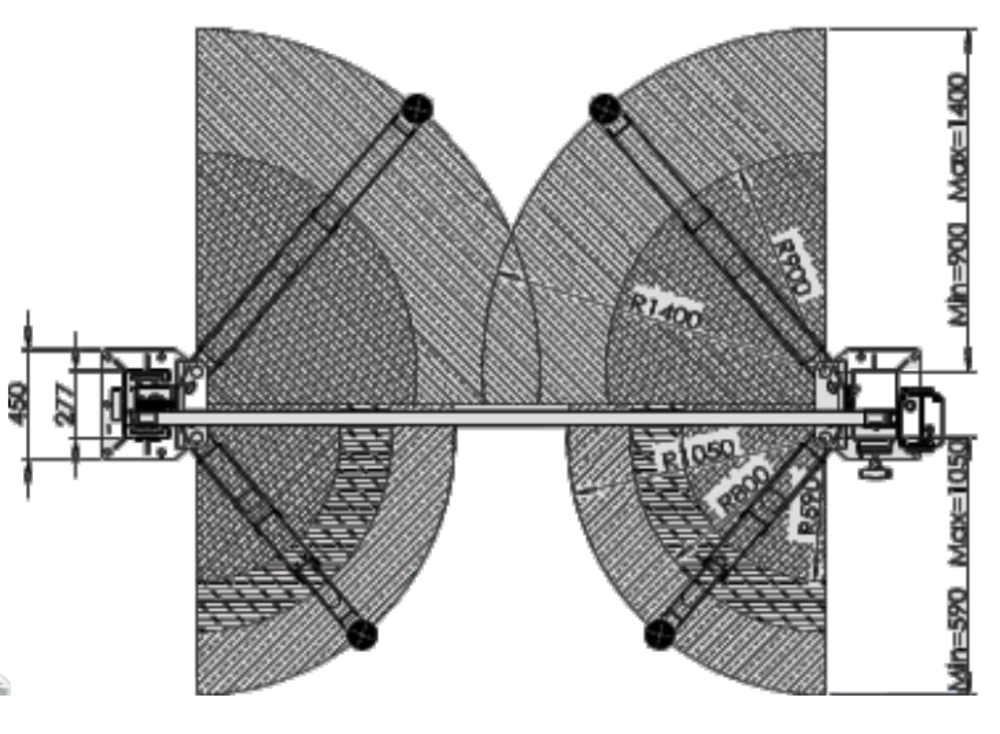

| Arm size
| | (3)590-1050mm
| Arm size
| | (2)900-1400mm
| Width between posts
| | 2800mm
| Lifting capacity
| | 4.0T |
|
