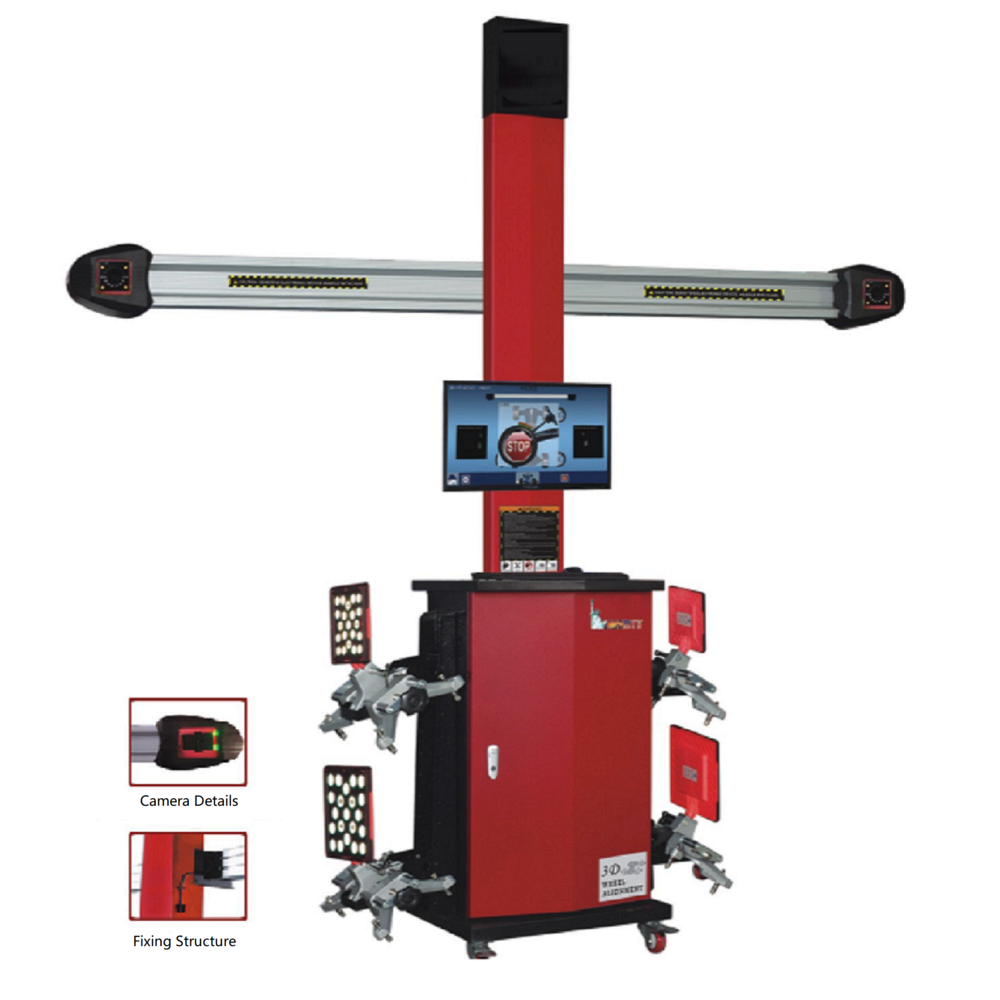

Equipped with double cameras, a fixed camera beam, steel stand column, movable cabinet and 22'' LCD display.

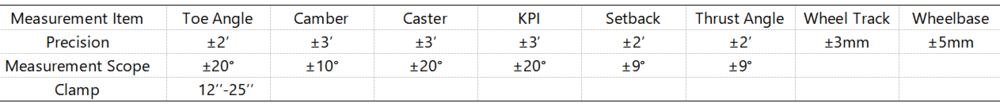

Measurement Functions:
Four wheel alignment, two wheel alignment, single wheel measurement, camber, kingpin caster angle, kingpin inclination angle, toe angle, setback, thrust angle and axis offset measurement, wheelbase measurement, wheel offset measurement, wheel track measurement, rolling radius measurement, scrub radis measurement, hand wheel alignment, toe lock adjustment, steering locking angle measurement, and camber at zero toe measurement.
Standard Accessories:
1* camera beam
1* steel stand column
1* movable cabinet
1* PC
1* printer
1* 22'' LCD monitor
4* targets
4* clamps
2* turntables
1* steering locker
1* pedal locker
1* turntable transition block
2* wedgy rubber blocks
|
|
