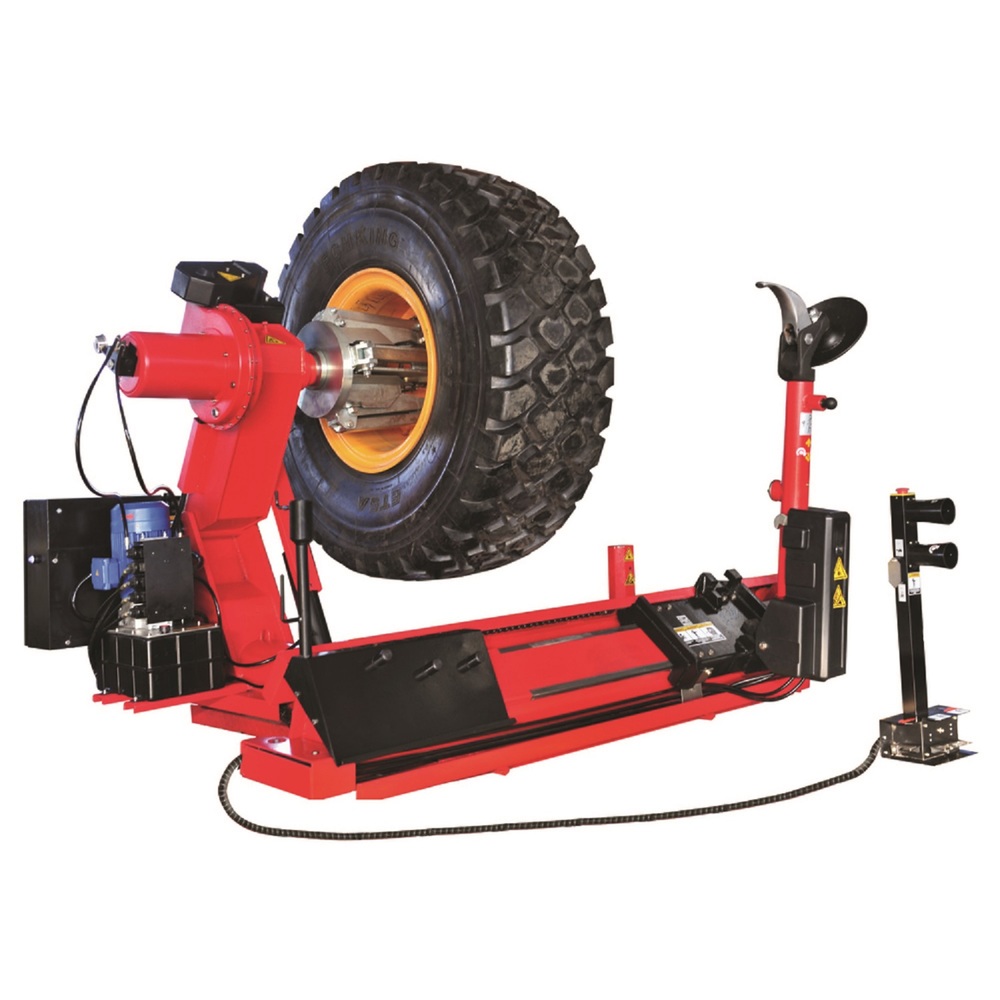

TRUCK TIRE CHANGER
With dominant position in the international market for many years, TCS56 enjoys high reputation in this line.
1. TCS56 truck tire changer is specially designed to mount and demount tires from trucks, buses, tractors and earthmoving vehicles.
2. Automatic truck tire changer, universal self-centering chuck with clamping size of 14''-56''.
3. Equipped with bi-directional chuck with 2 rotational speeds. Equipped as standard with 56'' extension chucks, suitable for more vehicles.
4. Equipped with movable low voltage control handle for easy and convenient operation.
5. Hydraulic pump station employs good quality components, which meet CE requirements, stable and safe during the operation.
6. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance. The electric cabinet adopts CE level protection standards.
7. The lifting arm and base are made of reinforced thickened metal, with high strength.
8. Italian pump and wireless remote control unit optional.
2. Automatic truck tire changer, universal self-centering chuck with clamping size of 14''-56''.
3. Equipped with bi-directional chuck with 2 rotational speeds. Equipped as standard with 56'' extension chucks, suitable for more vehicles.
4. Equipped with movable low voltage control handle for easy and convenient operation.
5. Hydraulic pump station employs good quality components, which meet CE requirements, stable and safe during the operation.
6. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance. The electric cabinet adopts CE level protection standards.
7. The lifting arm and base are made of reinforced thickened metal, with high strength.
8. Italian pump and wireless remote control unit optional.
| Rim diameter： | 14''- 56'' |
| Max. wheel width： | 1200mm |
| Max. wheel diameter： | 2500mm |
| Max. wheel weight: | 2000kg |
| Hydraulic station motor power: | 1.5KW 380V/3PH 50HZ |
| Main shaft motor power: | 1.8KW 380V/3PH 50HZ |
| Noise: | <75dB |
| Packing dimensions: | 2100x1650x930 mm |
| Net weight: | 1145kg |
| Gross weight: | 1300kg |
| Loading in 20/40 Ft. container: | 4/10 sets |
