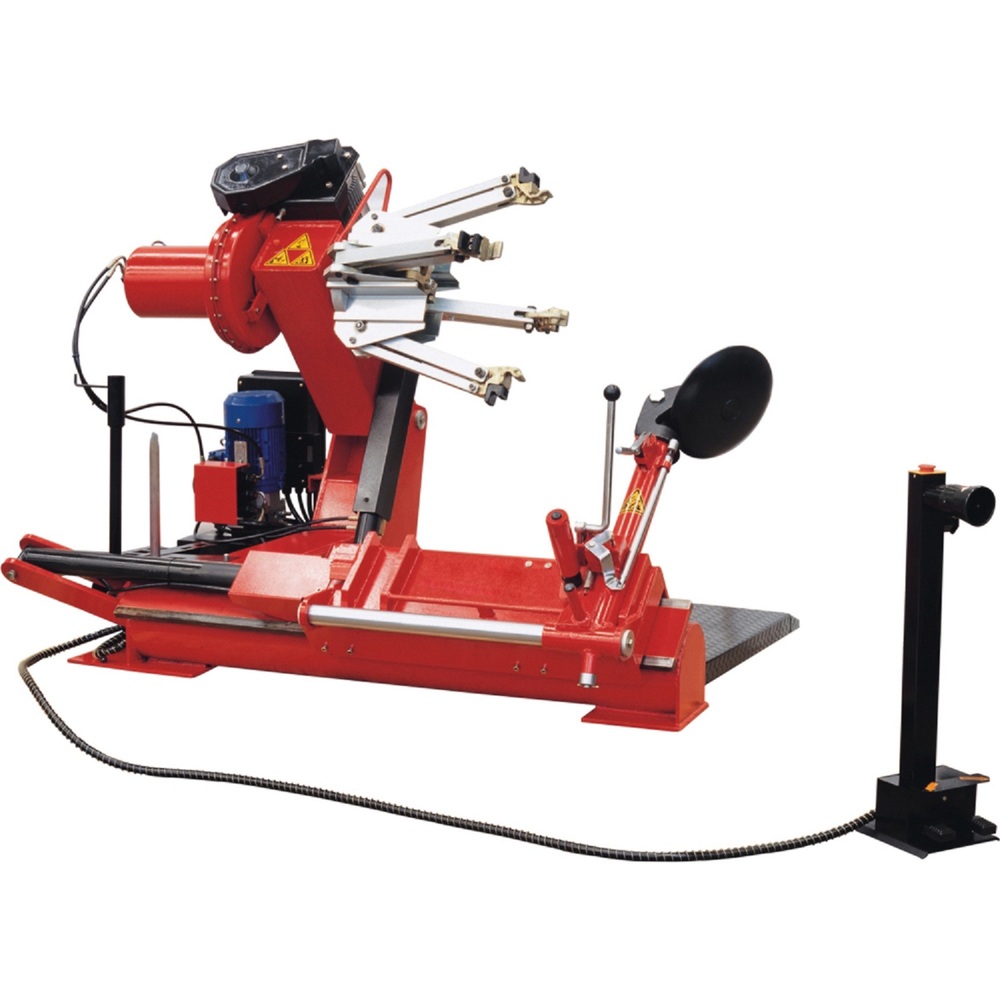

TCS52B

1. Semi-automatic universal truck tyre changer, suitable for mount and demount tires of industrial, agricultural and earthmoving vehicles.
2. Equipped with universal self-centering chuck, with clamping size of 14''-42''.
3. Equipped with movable low voltage control handle for easy and convenient operation.
4. Hydraulic pump station employs good quality components, which meet CE requirements, stable and safe during the operation.
5. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance.
6. The electric cabinet adopts CE level protection standards. The lifting arm and base are made of reinforced thickened metal, with high strength.
7. Italian pump and wireless remote control unit optional.

Rim diameter：
14''-42''
Max. wheel width：
1050mm
Max. wheel diameter：
2300mm
Max. wheel  weight:
1600kg
Hydraulic station motor power:
1.5KW 380V/3PH 50HZ
Main shaft motor power:
1.8KW 380V/3PH 50HZ
Noise:
<75dB
Packing dimensions:
2100x1650x930 mm
Net weight:
758kg
Gross weight:
900kg
Loading in 20/40 Ft.container :
6/14 sets
