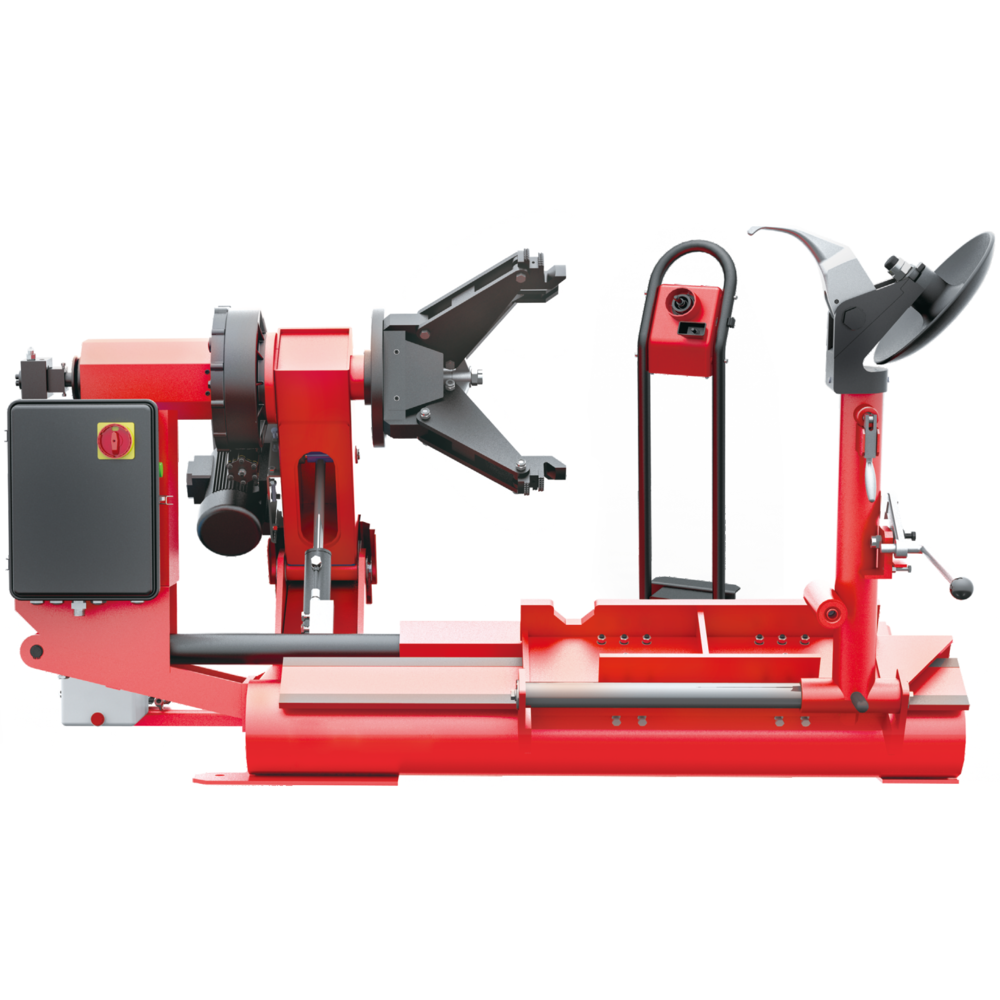

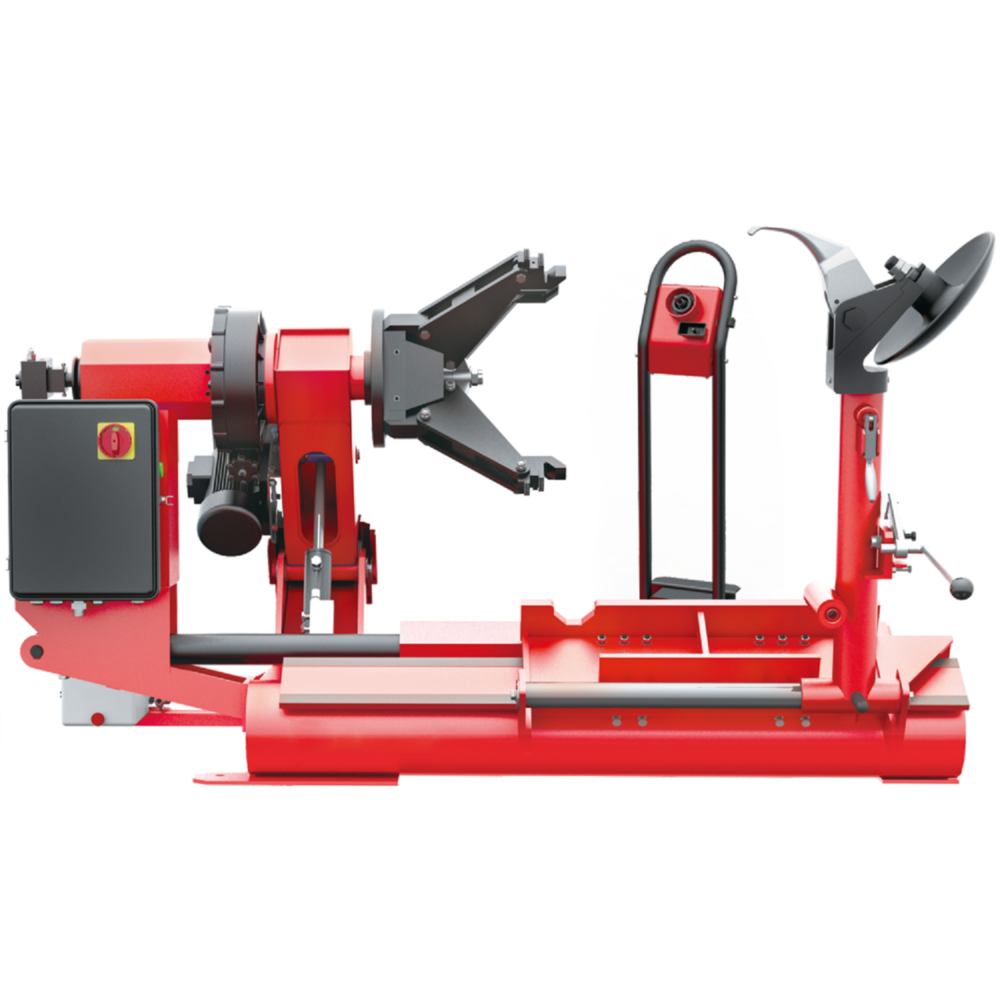

TRUCK TIRE CHANGER
Concentrating on truck tire services for over 15 years, with constant improving and updating, it now becomes professional equipment for mounting and demounting of truck and bus tires.
1. Hydraulic control system, reliable rim clamping with stable movement. The hydraulic pump station employs imported components with good stability.
2. Compliant with CE standards, totally safe during operation.
3. Lifting arm cylinder is center supported, for even pressure bearing.
4. Movable operating station can be fully observed during operation to prevent danger by misoperation.
5. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance.
6. The electric cabinet adopts CE level protection standards. The lifting arm and base are made of reinforced thickened metal, with high strength.
7. Lifting arm cylinder equipped with safety protection device to increase operation safety.
| Rim diameter： | 14''-26'' |
| Max. wheel width： | 1000mm |
| Max. wheel diameter： | 1600mm |
| Hydraulic power: | 130-150bar |
| Hydraulic station motor power: | 1.5KW 380V/3PH 50HZ |
| Main shaft motor power: | 1.8KW 380V/3PH 50HZ |
| Noise: | <75dB |
| Packing dimensions: | 2100x1650x930 mm |
| Net weight: | 561kg |
| Gross weight: | 739kg |
| Loading in 20/40 Ft.container: | 6/14 sets |
